TOPH2032 Series SL Double Helix Conical Mixer

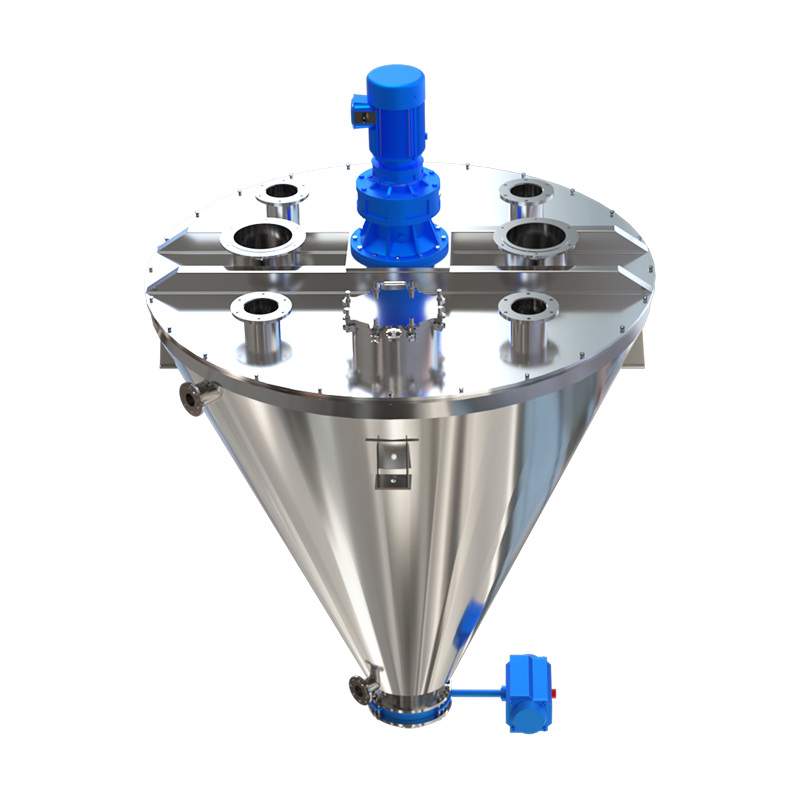

The 32 series double helix conical mixer is a new type of mixing equipment with high homogeneity, low energy consumption, low residue, and low crushing. The equipment is equipped with two asymmetric spirals. While rotating around the axis, they rotate around the axis and use the rotation action of the rotating arm to make revolutions in the cone. The material is repeatedly lifted through the male and self-rotation of the spirals to finally achieve the purpose of mixing evenly. This product has a wide range of applications and can mix powder and powder, powder and liquid, and can stir fine powder, fiber, or sheet-like materials.
Request a Quote
Configure impeller

The 32 series double helix conical mixer is a new type of mixing equipment with high homogeneity, low energy consumption, low residue, and low crushing. The equipment is equipped with two asymmetric spirals. While rotating around the axis, they rotate around the axis and use the rotation action of the rotating arm to make revolutions in the cone. The material is repeatedly lifted through the male and self-rotation of the spirals to finally achieve the purpose of mixing evenly. This product has a wide range of applications and can mix powder and powder, powder and liquid, and can stir fine powder, fiber, or sheet-like materials.

Remark

How it works

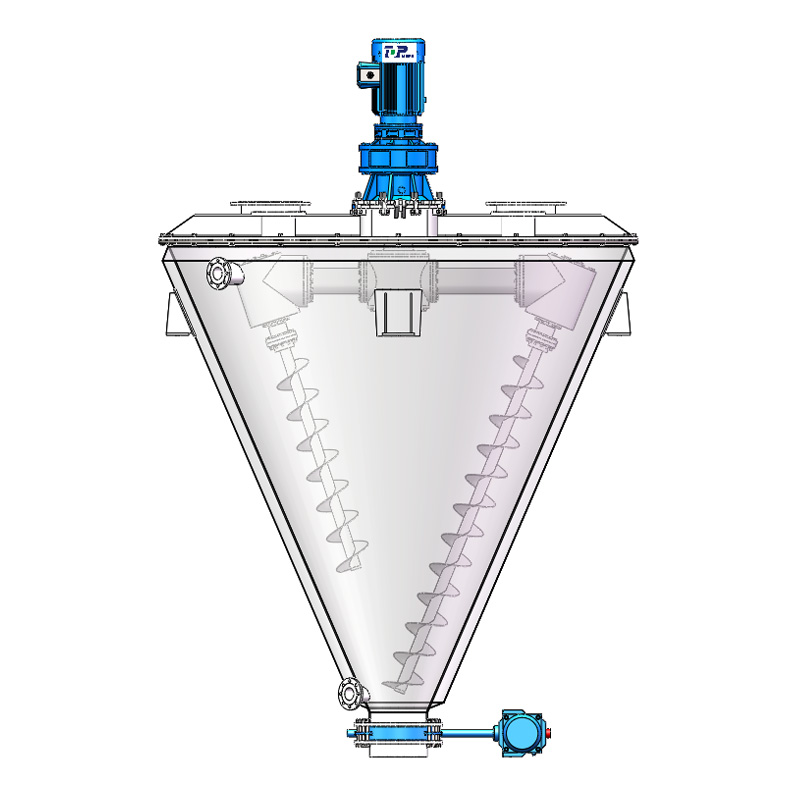

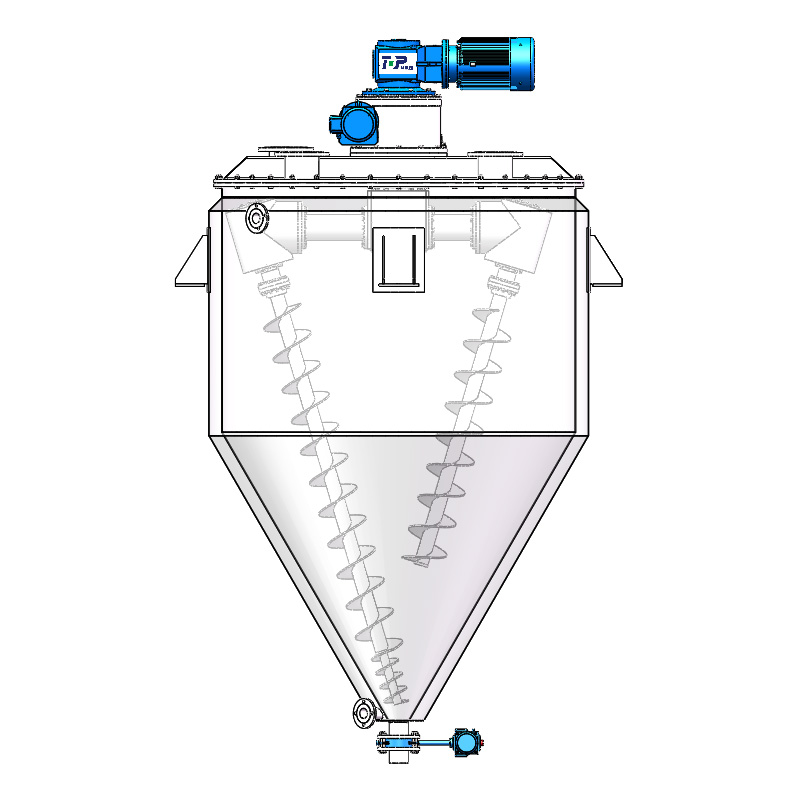

The double-spiral conical mixer consists of a transmission part, a screw agitator, and an inverted conical barrel. The agitator is two asymmetric spirals. While rotating around the axis, they rotate around the axis and use the rotation action of the rotating arm to make revolutionary movements in the cone. The equipment repeatedly lifts the material through the male and self-rotation of the spiral, and generates composite movements such as shear, convection, diffusion, etc. in the cone, thereby achieving the purpose of uniform mixing.

Product Parameters
Model Full volume (m3) Loading coefficient D(mm) H(mm) Drive power (kW) Equipment weight (kg)
TOPH2032-0.1 0.1 0.6 ∅702 1569 1.5 250
TOPH2032-0.3 0.3 0.6 ∅920 1929 2.2 550
TOPH2032-0.5 0.5 0.6 ∅1124 2322 3 660
TOPH2032-1.0 1 0.6 ∅1480 2869 4 1200
TOPH2032-1.5 1.5 0.6 ∅1633 3140 5.5 1350
TOPH2032-2 2 0.6 ∅1816 3489 5.5 1500
TOPH2032-3 3 0.6 ∅2210 3747 7.5 2300
TOPH2032-5 5 0.6 ∅2402 4576 11 3000
TOPH2032-8 8 0.6 ∅2805 5405 15 4500
TOPH2032-10 10 0.6 ∅3018 5795 18.5 5500
TOPH2032-15 15 0.6 ∅3450 6475 22 6600
TOPH2032-20 20 0.6 ∅3805 7535 30 7000
