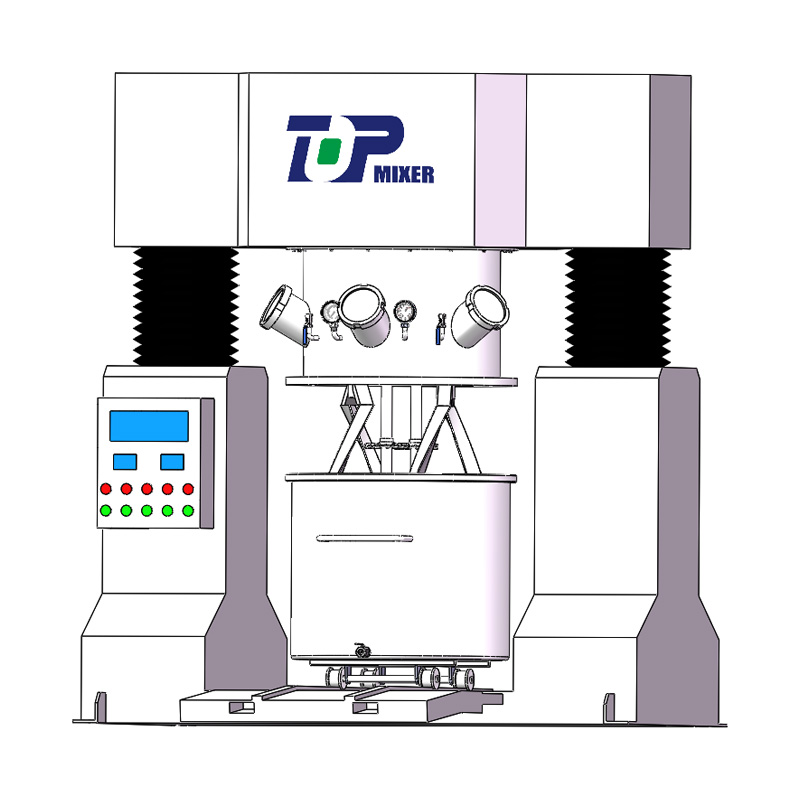

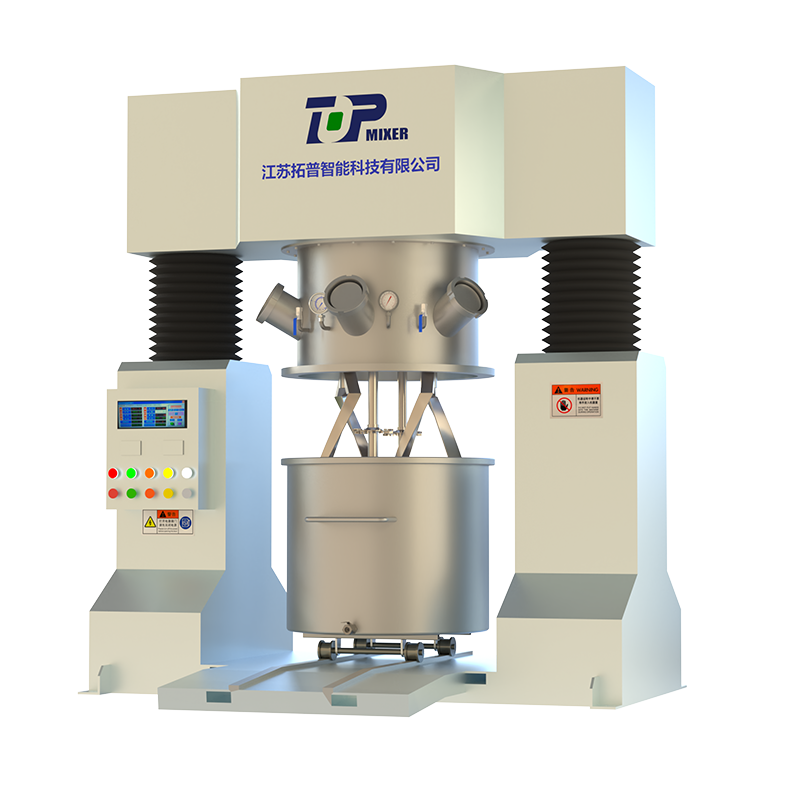

TOPH2013 Series GXJ Industrial Double Planetary Mixer

GXJ-type industrial dual planetary mixer is a new mixing equipment with high performance, high efficiency, and ease of cleaning and maintenance. The double-group agitator of this equipment rotates around the axis while rotating. The agitator form is selected according to the viscosity and process characteristics of the material. Common ones include blade type, twist type, claw type, frame type, etc., which have good mixing, reaction, dispersion, and dissolution effects. The high-speed disperser consists of multiple layers of serrated dispersion discs with extremely high linear speed. It also rotates around the axis while rotating at high speed. It can quickly disperse powder (adjusting agent) to the slurry force and has a strong dispersion effect. The dual-planetary power mixing mixer is equipped with a set of independent scrapers, which are constantly scraped against the wall of the barrel. At the same time, the stirring paddle can add scrapers and be arranged at the bottom of the barrel for scraping, avoiding stirring dead corners, ensuring the stability of the product, and improving the mixing effect. Its transmission adopts planetary wheel transmission, with large output torque, and is suitable for high-temperature, high-solidity, high viscosity, and other high-difficulty conditions. The machine is designed with a closed design, which can be used to match a vacuum system to realize vacuum stirring. The mixing barrel can be designed with jacket heating, and a mold temperature machine to realize a constant temperature stirring function. It is the choice for dispersion and stirring equipment for high-viscosity materials on the market.
Request a Quote
Configure impeller

GXJ-type industrial dual planetary mixer is a new mixing equipment with high performance, high efficiency, and ease of cleaning and maintenance. The double-group agitator of this equipment rotates around the axis while rotating. The agitator form is selected according to the viscosity and process characteristics of the material. Common ones include blade type, twist type, claw type, frame type, etc., which have good mixing, reaction, dispersion, and dissolution effects. The high-speed disperser consists of multiple layers of serrated dispersion discs with extremely high linear speed. It also rotates around the axis while rotating at high speed. It can quickly disperse powder (adjusting agent) to the slurry force and has a strong dispersion effect. The dual-planetary power mixing mixer is equipped with a set of independent scrapers, which are constantly scraped against the wall of the barrel. At the same time, the stirring paddle can add scrapers and be arranged at the bottom of the barrel for scraping, avoiding stirring dead corners, ensuring the stability of the product, and improving the mixing effect. Its transmission adopts planetary wheel transmission, with large output torque, and is suitable for high-temperature, high-solidity, high viscosity, and other high-difficulty conditions. The machine is designed with a closed design, which can be used to match a vacuum system to realize vacuum stirring. The mixing barrel can be designed with jacket heating, and a mold temperature machine to realize a constant temperature stirring function. It is the choice for dispersion and stirring equipment for high-viscosity materials on the market.

Remark

Material Viscosity: ≤3000000cps

Production Capacity: 5-2000L

Application Field: Suitable for dispersing and mixing materials in coatings, putty, inks, adhesives, energy, electronics and electrical appliances, pharmaceuticals, cosmetics, food, and other industries.

Applicable materials: Various slurries with a material viscosity below 3000000cps and a solid content below 90%; such as battery slurry, solder paste, ceramic slurry, silicone ink, sealant, structural glue, soft ointment, jam, etc.

Product Advantages

High stirring efficiency and wide application range

The dual-planetary power mixer has two sets of stirring paddles and a set of high-speed dispersion shafts rotating around the barrel axis at high speed, so that the material is subject to strong shearing and kneading, achieving the purpose of rapid mixing; the stirring paddles are available in various forms such as blade type, twist type, melon type, frame type, etc. The best stirring form can be selected for materials with different viscosity specific gravity and different production process requirements.

Easy to operate and safe

The equipment is used as a lifting actuator through the oil cylinder. The lifting adopts the bottom lifting method, that is, the agitating device is fixed, and the operation is achieved through the lifting of the material barrel. The lifting device has a material barrel fixing device, which can prevent the barrel from being displaced during work and causing safety accidents. At the same time, a slide rail device is provided between the agitating and extrusion to facilitate material movement and realize integrated stirring and discharge operations.

The material does not stick to the wall, the discharge is clean

There is a scraper on the planet carrier moving with the planet carrier, constantly scraping against the bucket wall. After the bucket wall is finished stand-alone, it is polished by an automatic polishing machine to ensure that the movable scraper on the planet carrier completely scrapes the barrel wall material when it rotates, so that there is no retained material on the bucket wall, and improves the mixing effect.

Product Parameters
Model Effective volume(L) Design volume(L) Mixing barrel size(mm) Stirring power(kW) Rotation speed(rpm) Rotation speed (rpm) Dispersed power (kW) Dispersed speed (rpm) Linear speed (m/s)
TOPH2013-100 100 150 ∅650*450 15 0-34 0-56 18.5 0-2930 23
TOPH2013-200 200 265 ∅750*650 22 0-33 0-53 30 0-2750 23
TOPH2013-300 300 370 ∅850*650 30 0-33 0-53 37 0-2200 23
TOPH2013-500 500 670 ∅1000*850 37 0-28 0-47 45 0-2000 23
TOPH2013-650 650 822 ∅1100*865 45 0-28 0-47 55 0-1750 23
TOPH2013-900 900 1390 ∅1300*1050 75 0-24 0-32 75 0-1450 23
TOPH2013-1200 1200 2000 ∅1450*1200 90 0-18 0-28 90 0-1375 23
TOPH2013-1500 1500 2300 ∅1500*1300 110 0-18 0-28 110 0-1375 23
TOPH2013-2000 2000 3000 ∅1600*1500 132 0-16 0-28 132 0-1200 23
