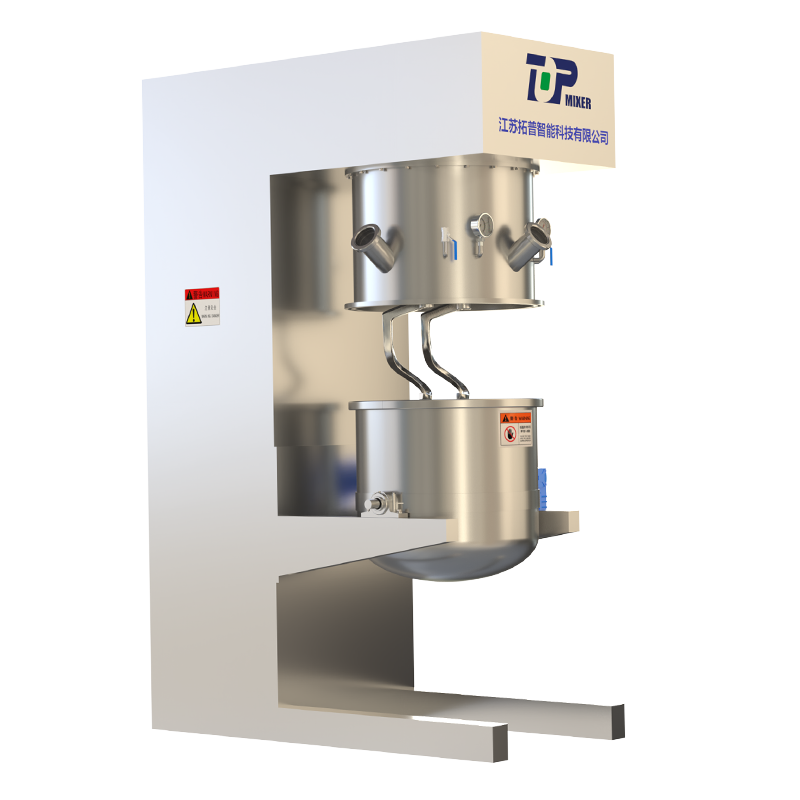

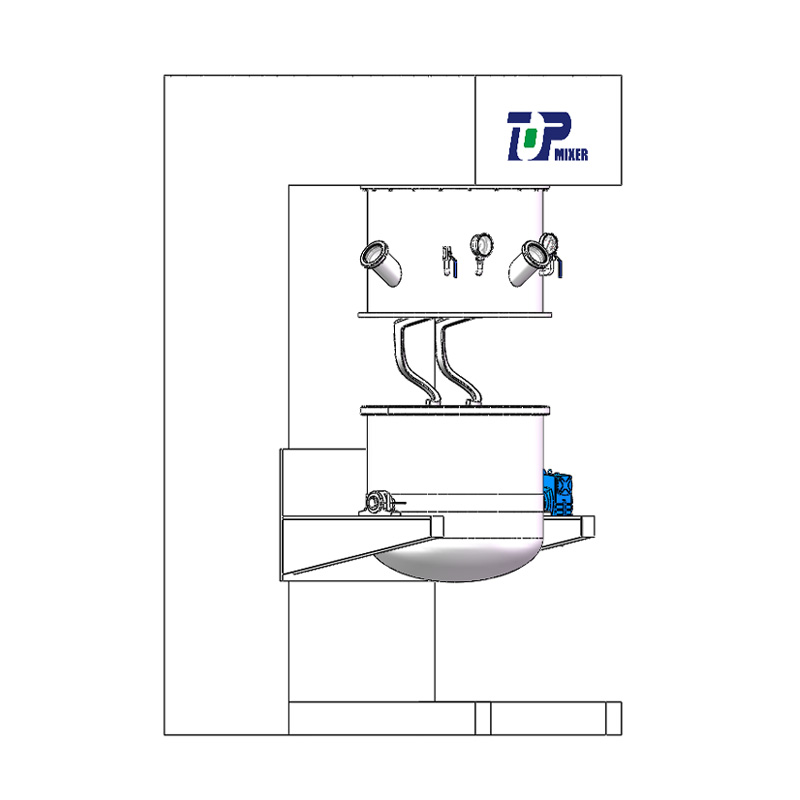

The 22 Series GG industrial planetary mixer is a new and efficient mixing equipment. The mixing paddle rotates around the axis of the kettle body while rotating around its own axis so that the materials can be fully mixed in the kettle; the 22 Series GG industrial planetary mixer has good mixing, stirring, reaction, dispersion ,and dissolution, and is especially suitable for solid-solid and solid-liquid mixing. At the same time, the equipment also has a wall scraping function, which ensures no dead corners and no residues during the entire equipment operation. There are many forms of stirring paddles, and the contact material part can be sprayed with ceramic materials (zirconia/tungsten carbide/Teflon, etc.). Reduces metal ion pollution.
Application areas
This equipment is suitable for mixing products and materials in ceramics, polymer materials, and other industries; the production capacity can reach 2L-3000L.
| Model | Effective volume (L) | Design volume (L) | Stirring power (kW) | Rotation speed (rpm) | Rotation speed (rpm) | Dispersed speed (rpm) | Dispersed speed (rpm) | Lifting stroke (mm) | Vacuum pump power (kW) |
Weight Dimensions (mm) |
| TOPH2022-100 | 100 | 140 | 7.5-15 | 0-40 | 0-72 | 11~18.5 | 0-1450 | 650 | 1.5 | 3300kg 2350*1340*2050 |
| TOPH2022-200 | 200 | 280 | 15-22 | 0-40 | 0-72 | 18.5~22 | 0-1450 | 800 | 3 | 4300kg 2350*1500*2320 |
| TOPH2022-300 | 300 | 400 | 22-37 | 0-40 | 0-72 | 30~37 | 0-1450 | 900 | 3 | 5700kg 2700*1800*2520 |
| TOPH2022-500 | 500 | 665 | 30-45 | 0-30 | 0-55 | 37~45 | 0-1450 | 1050 | 4 | 6800kg 2700*2000*2600 |
| TOPH2022-650 | 650 | 800 | 37-45 | 0-30 | 0-55 | 37~45 | 0-1450 | 1100 | 4 | 8000kg 2700*2000*2900 |
| TOPH2022-800 | 800 | 1070 | 37-55 | 0-30 | 0-55 | 45~55 | 0-1450 | 1150 | 5.5 | 8500kg 3200*2000*3100 |
| TOPH2022-1000 | 1000 | 1320 | 45-90 | 0-30 | 0-55 | 55~75 | 0-1200 | 1200 | 7.5 | 11000kg 3400*2200*3300 |
| TOPH2022-1500 | 1500 | 1980 | 55-110 | 0-20 | 0-36 | 75~90 | 0-1200 | 1400 | 11 | 15000kg 3400*2600*3800 |
| TOPH2022-2000 | 2000 | 2550 | 75-132 | 0-20 | 0-36 | 90~110 | 0-1000 | 1550 | 11 | 20000kg 3800*2900*4100 |
| TOPH2022-3000 | 3000 | 3820 | 90-160 | 0-15 | 0-28 | 110~132 | 0-1000 | 1700 | 15 | 25000kg 4300*3200*4600 |
