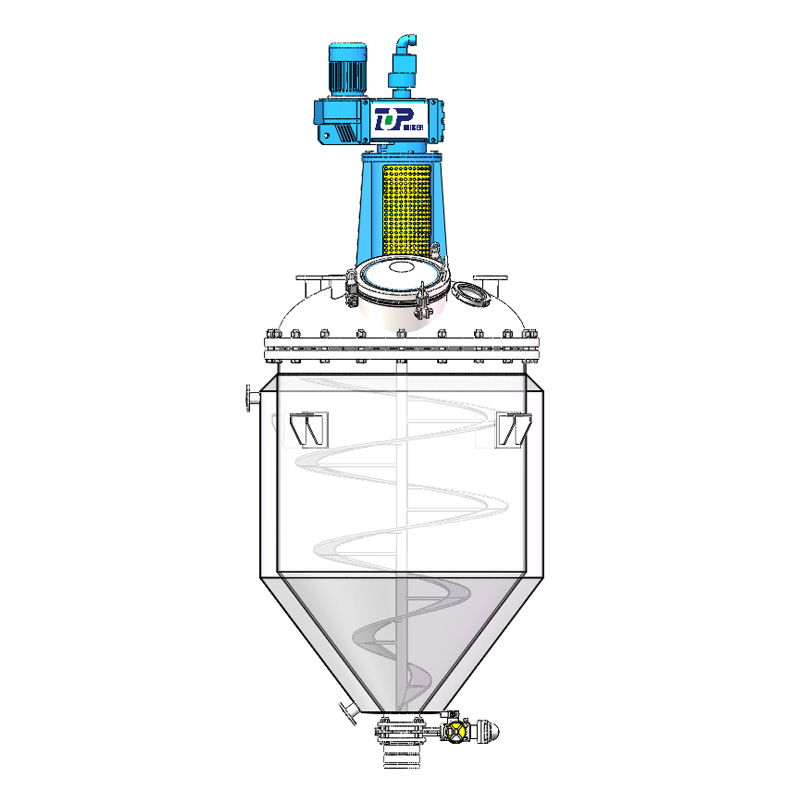

TOPH2031 Series V-Type Vacuum Ribbon Mixer

Product Advantages 1. Frequently displace and stir the free-flow solid material. 2. Cantilever shaft structure, the bearing end does not come into contact with the material.
 3. The gap between the stirring slurry and the container wall is very small to prevent the material from being bonded. 4. Standardized stirring drive box to ensure stable operation and low maintenance costs. 5. O-rings with special geometric shapes, high-quality equipment surface treatment and eliminate blind spots. 6. The container can be heated or cooled by an outer jacket (optional). 7. The crusher is used to prevent material from agglomerating.
Request a Quote
Configure impeller

Product Advantages

1. Frequently displace and stir the free-flow solid material.

2. Cantilever shaft structure, the bearing end does not come into contact with the material.


3. The gap between the stirring slurry and the container wall is very small to prevent the material from being bonded.

4. Standardized stirring drive box to ensure stable operation and low maintenance costs.

5. O-rings with special geometric shapes, high-quality equipment surface treatment and eliminate blind spots.

6. The container can be heated or cooled by an outer jacket (optional).

7. The crusher is used to prevent material from agglomerating.

Remark

Features

The powerful mixing effect causes the materials close to the container to move upwards and the materials at the center to move downwards, softly but completely mixing the flowable pellets. A large amount of materials can be mixed in a short time and can achieve high standards of mixing evenly, and almost all materials can be drained.

Application areas

The mixing of solid powders, such as fine chemicals, dyes, fertilizers and metal powders, shear-sensitive crystalline powders, batch products blend, mixing liquid into solids, the equipment design is well suited for the overall layout of typical chemical plants and is also suitable for hazardous places due to the low circumferential speed.

Product Parameters
Model Effective volume (L) Height (mm) Width (mm) Weight (kg)
TOPH2031-V1 106 1900 1000 800
TOPH2031-V2 256 2300 1100 1000
TOPH2031-V3 432 2500 1300 1500
TOPH2031-V4 674 2900 1500 2000
TOPH2031-V5 1107 3200 1700 3000
TOPH2031-V6 1711 3500 2000 3500
TOPH2031-V7 2500 4000 2200 4000
TOPH2031-V8 4088 4400 2600 5000
TOPH2031-V9 5454 4500 2600 5500
TOPH2031-V10 7093 5100 3000 6500
TOPH2031-V11 10077 6200 3400 10000
TOPH2031-V12 16836 6900 3900 13000
TOPH2031-V13 20216 7400 4600 16000
TOPH2031-V14 26091 8000 5000 18000
TOPH2031-V15 33007 8500 5400 20000
