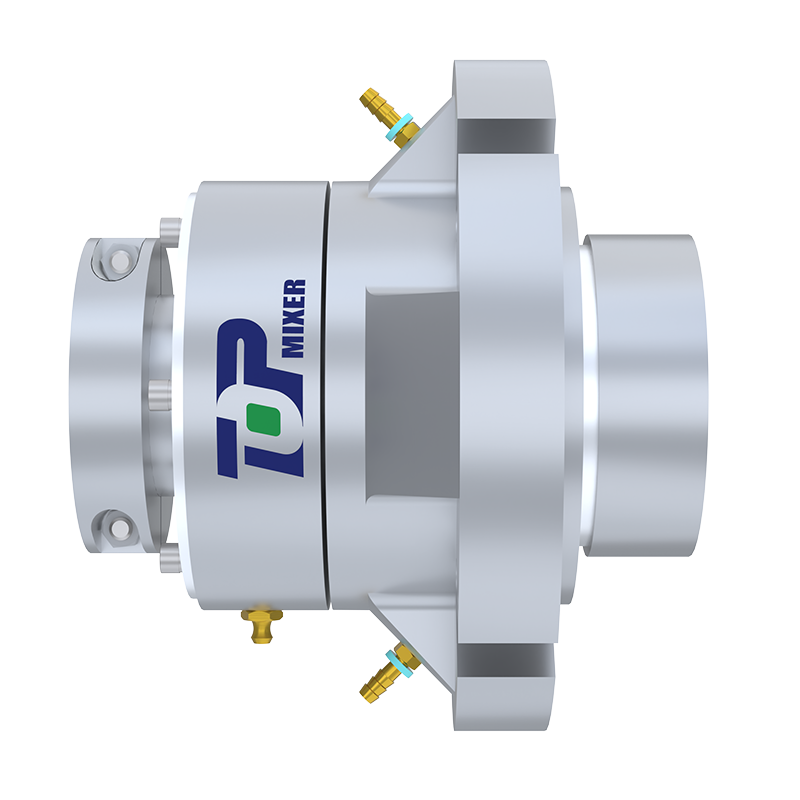

Side Stirring Single End Mechanical Seal

Simple seal structure, easy to manufacture and install. When installing, just put the sealing accessories into the sealing slot and then gently press them to seal. At the same time, the seal has a good self-adjustment function, which can adapt to different sizes and improve production efficiency. Due to the simple sealing style and relatively few internal structures, the chance of sealing leakage is reduced, the long-term and stable use of seals can be ensured, the service life of the machine is extended, and the maintenance cost is reduced.
Request a Quote
Configure impeller

Simple seal structure, easy to manufacture and install. When installing, just put the sealing accessories into the sealing slot and then gently press them to seal. At the same time, the seal has a good self-adjustment function, which can adapt to different sizes and improve production efficiency. Due to the simple sealing style and relatively few internal structures, the chance of sealing leakage is reduced, the long-term and stable use of seals can be ensured, the service life of the machine is extended, and the maintenance cost is reduced.

Remark

Product Application

This mechanical seal consists of a pair of sealing end faces, which is the most commonly used mechanical seal type when the media itself has good lubricity and allows for minor leakage. It is commonly used for stirring shaft sealing and is an ideal way to solve stirring shaft sealing.

Product Parameters

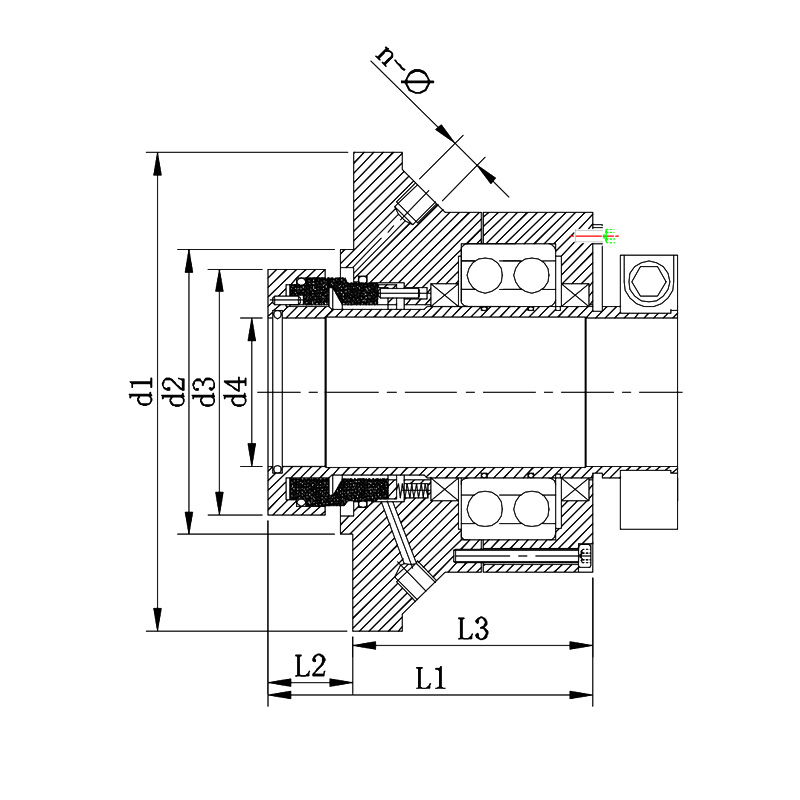

Model d1 d2 d3 d4 L1 L2 L3 n-∅
HR3-40 175 110 83 40 166 37.5 107 4-∅12
HR3-45 175 110 88 45 166 37.5 107 4-∅12
HR3-50 195 120 93 50 175 37.5 116 4-∅12
HR3-55 200 125 98 55 176 37.5 117 4-∅14
HR3-60 200 120 103 60 177.5 37.5 118.5 4-∅14
HR3-65 210 125 108 65 179.5 37.5 120.5 4-∅14
HR3-70 215 135 113 70 182 37.5 123 4-∅14.5
HR3-80 255 160 128 80 196.5 39.5 135 6-∅18
HR3-90 295 185 143 90 214 39.5 149.5 8-∅18
