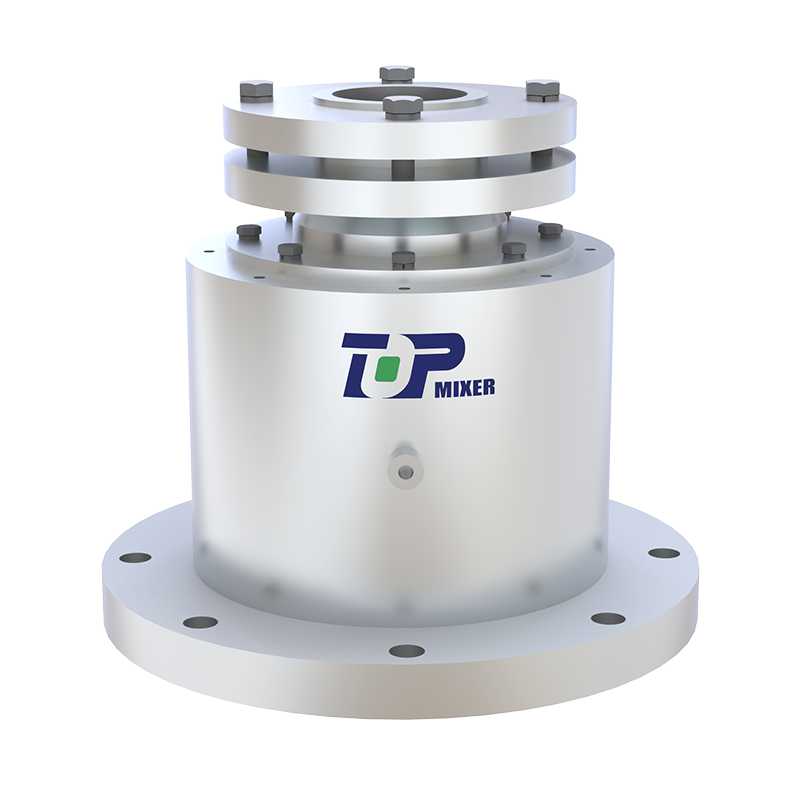

2004, 2005, 2006 Double End Mechanical Seal

Request a Quote
Configure impeller
Remark
Product Parameters

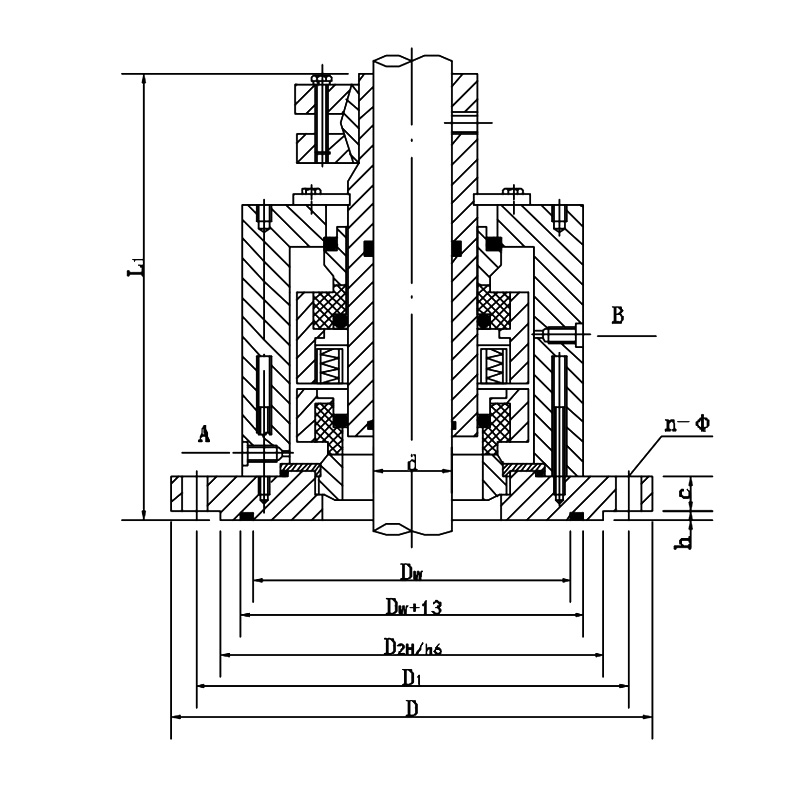

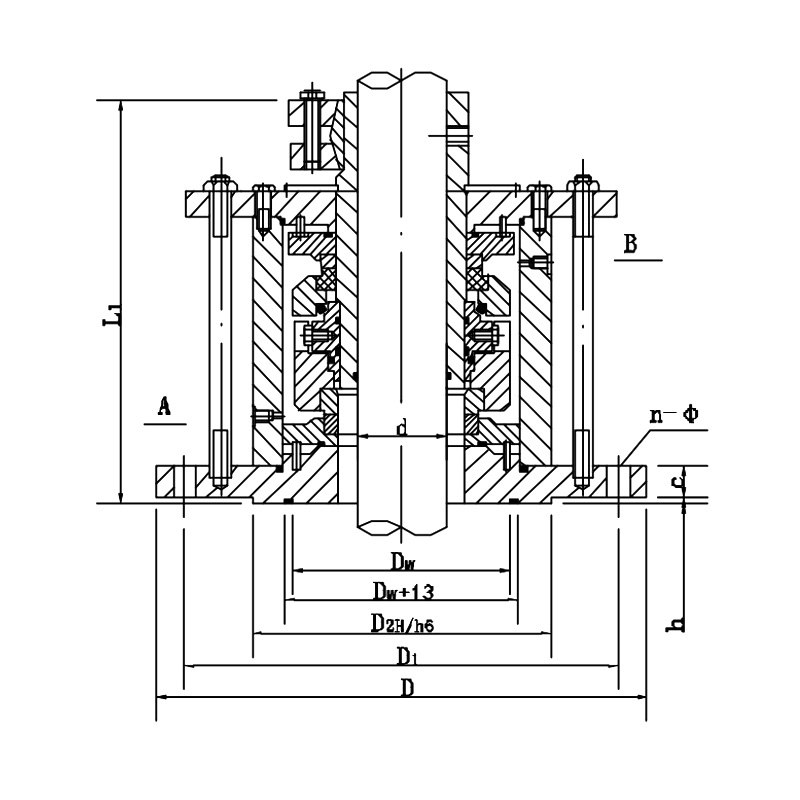

2004 and 2005 mechanical seal installation dimensions

d 30~40 45～55 60~70 75～85 90~100 110~130 140~160
D 175 240 240 275 305 330 395
D1 145 210 210 240 270 295 350
D2 110 176 176 204 234 260 313
Du 85 140 140 180 200 220 270
n-∅ 4-∅18 8-∅18 8-∅18 8-∅22 8-∅22 8-∅22 12-∅22
L1 148 160 160 170 180 200 205
L2 215 230 260 280 280 305 310
C 24 26 26 28 30 32 34
h 6 6 6 6 6 6 6

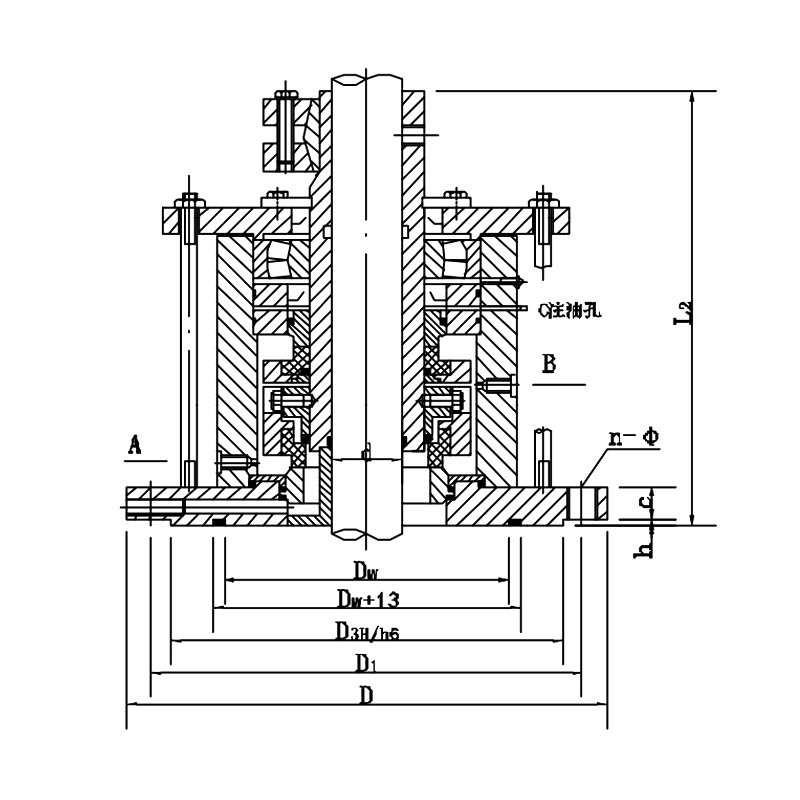

2006 mechanical seal installation dimensions

d 30~40 45～55 60~70 75~85 90~100 110~130 140~160
D 200 240 255 295 305 330 395
D1 170 210 225 260 270 295 350
D2 130 176 176 204 234 260 313
Du 100 140 140 180 200 220 270
n-∅ 4-∅18 8-∅18 8-∅18 8-∅22 8-∅22 8-∅22 12-∅22
L1 160 170 170 180 180 200 260
Lz 215 230 260 280 280 305 310
C 26 28 28 30 32 34 36
h 6 6 6 6 6 6 6
PREV：TOPEM306 High-Temperature Resistant Mechanical Seal for ReactorsNEXT：205, 206, 207 Double End Mechanical Seal
