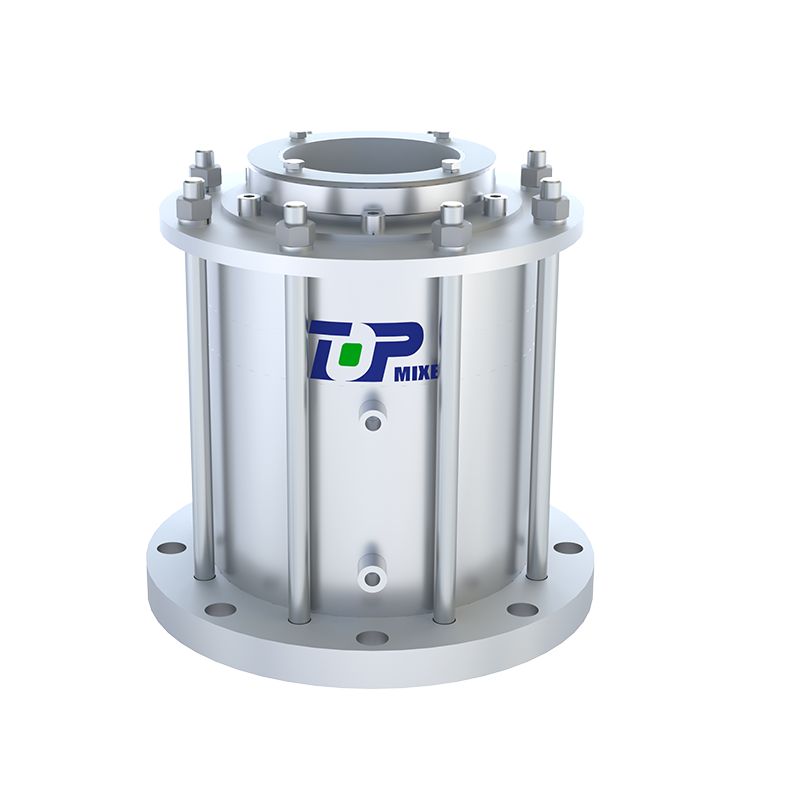

TOPEM306 High-Temperature Resistant Mechanical Seal for Reactors

It features a modular structure, highly interchangeable parts, non-directional transmission, and short axial installation dimensions, and is generally used in conjunction with a hydraulic pump station.
Request a Quote
Configure impeller

It features a modular structure, highly interchangeable parts, non-directional transmission, and short axial installation dimensions, and is generally used in conjunction with a hydraulic pump station.

Remark

Running parameters

Pressure: PN-0.1~1.6MPa
Speed: ≤2m/s
Temperature: -40°C~500°C
Media: Oil, water, weak alkali, weak acid, etc.
General Media: When the temperature exceeds 180°C, a cooling water tank must be installed, with the installation height L1 or L2 increased by 60mm.

Product Parameters

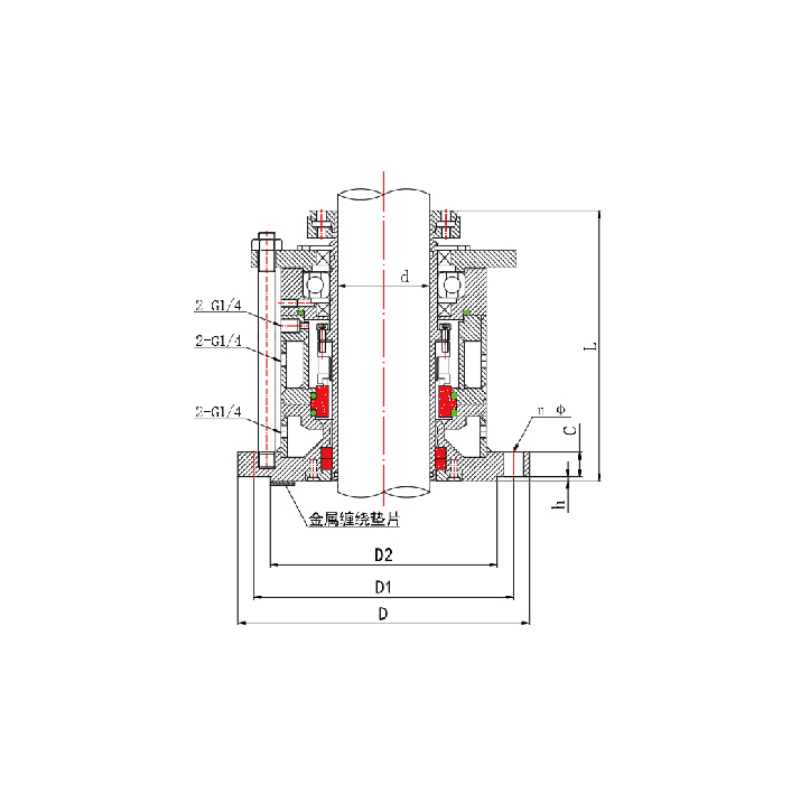

d D D₁ D₂ h n-Φ L
30 185 160 116 4 4-Φ14 190
35 205 170 135 4 4-Φ18 190
40 205 170 135 4 4-Φ18 190
45 235 200 165 4 8-Φ18 210
50 235 200 165 4 8-Φ18 210
55 235 200 165 4 8-Φ18 230
60 235 200 165 4 8-Φ18 230
65 235 200 165 4 8-Φ18 230
70 260 225 188 4 12-Φ18 250
75 260 225 188 4 12-Φ18 250
80 260 225 188 4 12-Φ18 250
85 290 255 220 4 12-Φ18 250
90 290 255 220 4 12-Φ18 270
95 290 255 220 4 12-Φ18 270
100 315 280 245 4 12-Φ18 290
105 315 280 245 4 12-Φ18 290
110 315 280 245 4 12-Φ18 290
115 370 320 270 4 12-Φ23 290
120 370 320 270 4 12-Φ23 330
125 370 320 270 4 12-Φ23 330
130 405 355 312 4 12-Φ23 350
140 405 355 312 4 12-Φ26 350
150 405 355 312 4 12-Φ26 350
160 435 395 353 4 12-Φ26 350
170 435 395 353 4 12-Φ23 380
180 485 445 403 4 12-Φ26 380
190 485 445 403 4 12-Φ26 380
200 485 445 403 4 12-Φ26 380
