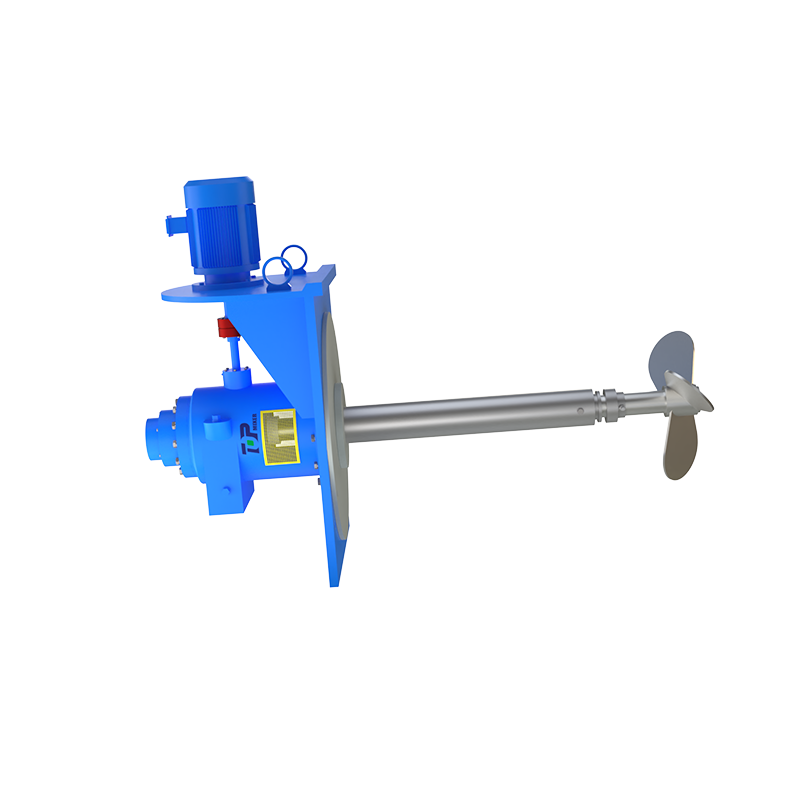

TOPC006 Oil Tank Side-Entry Mixer

This series of products has the characteristics of compact structure, low energy consumption, low noise, high efficiency, easy installation and operation, no need to emptiate the medium in the box and tank when replacing the seal, and is safe and reliable to use. The agitator is mainly used for power plant flue gas desulfurization devices, oil refineries oil storage bases, and other oil storage devices. In power plants, it mainly prevents the deposition of medium in the device box. In oil refining, food, medicine, and chemical plants, we mainly mix and blend the medium in the tank, strengthen heat exchange, keep the medium temperature uniform, prevent deposition and accumulation in the tank, and facilitate tank cleaning.
Request a Quote
Configure impeller

This series of products has the characteristics of compact structure, low energy consumption, low noise, high efficiency, easy installation and operation, no need to emptiate the medium in the box and tank when replacing the seal, and is safe and reliable to use.

The agitator is mainly used for power plant flue gas desulfurization devices, oil refineries oil storage bases, and other oil storage devices. In power plants, it mainly prevents the deposition of medium in the device box. In oil refining, food, medicine, and chemical plants, we mainly mix and blend the medium in the tank, strengthen heat exchange, keep the medium temperature uniform, prevent deposition and accumulation in the tank, and facilitate tank cleaning.

Remark

Remark:

● The weight in the table is approximate weight, without the weight of suspension and anchor bolts.

● The flange size in the table can be replaced by European and American standards.

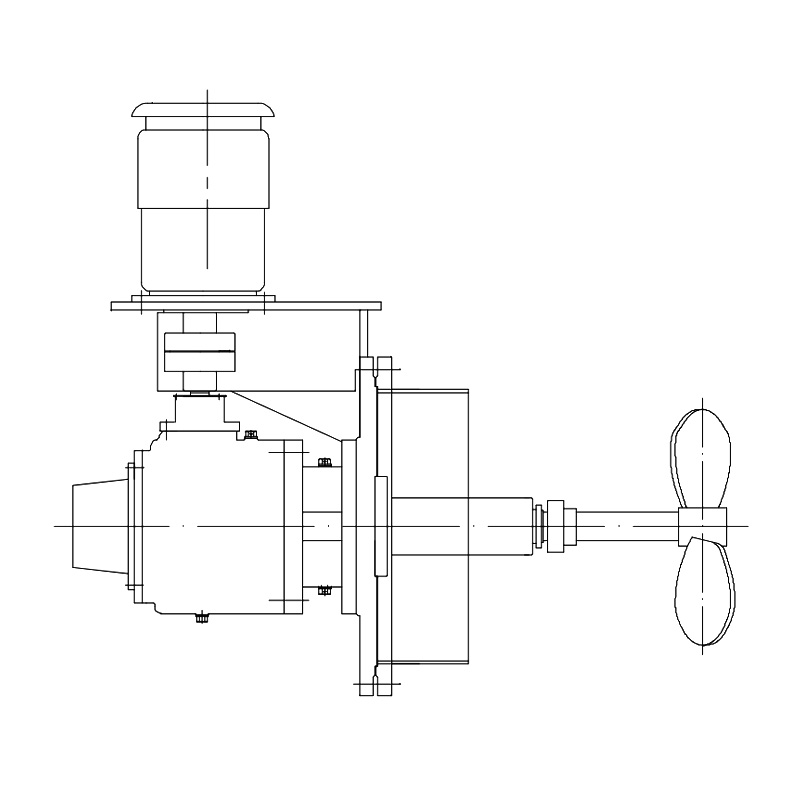

● The installation method shown is the installation pipe opening size on the side of the stirring container that can be selected during side installation.

● The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary due to the manufacturer and motor type. Please refer to the actual design.

● When the wall thickness of the stirring container is too thin and the strength is not enough, please use auxiliary reinforcement measures such as reinforcement ribs.

Product Parameters
Model Rotation(r/min) Power
(kW)		 Installation dimensions Weight(kg)
A B N-∅Z D D1 D2 S
TOPC006/1 120~500 0.55～1.5 600 683 12-∅18 360 320 260 40 ~266
TOPC006/2 120~500 1.5～4 850 683 16-∅22 490 445 413 50 ~533
TOPC006/3 120~500 4～11 1050 819 22-∅26 595 555 518 70 ~895
TOPC006/4 120~500 11～22 1380 1023 24-∅26 750 705 667 80 ~1238
TOPC006/5 120～500 22～30 1580 1220 24-∅26 860 810 772 90 ~1455
