TOPC001 CMC Series Magnetic Side-Entry Mixer

This series of mixers adopts an isolation sleeve static sealing structure and uses a strong magnetic field to transmit torque without contact, which can achieve permanent zero leakage. It is usually used in flammable, explosive, high-pressure, toxic media and other occasions. Advantages: The high mixing effect that a side-in mixer can achieve when power consumption is consumed, the power is only 1/3-2/3 of that of a general center mixer. Note: When selecting a model, users need to provide whether they contain solid particles and corrosive media.
Request a Quote
Configure impeller

This series of mixers adopts an isolation sleeve static sealing structure and uses a strong magnetic field to transmit torque without contact, which can achieve permanent zero leakage. It is usually used in flammable, explosive, high-pressure, toxic media and other occasions.

Advantages: The high mixing effect that a side-in mixer can achieve when power consumption is consumed, the power is only 1/3-2/3 of that of a general center mixer.

Note: When selecting a model, users need to provide whether they contain solid particles and corrosive media.

Remark

Remark:

1. The weight in the table is the approximate weight and does not include the weight of suspension or foot support.

2. The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary depending on the manufacturer and type of motor. Please use the design as the standard.

3. When the wall thickness of the mixing container is too thin and the strength is not enough, please use auxiliary reinforcement measures such as suspension and foot support.

4. The mixer and shaft length can also be customized according to user requirements.

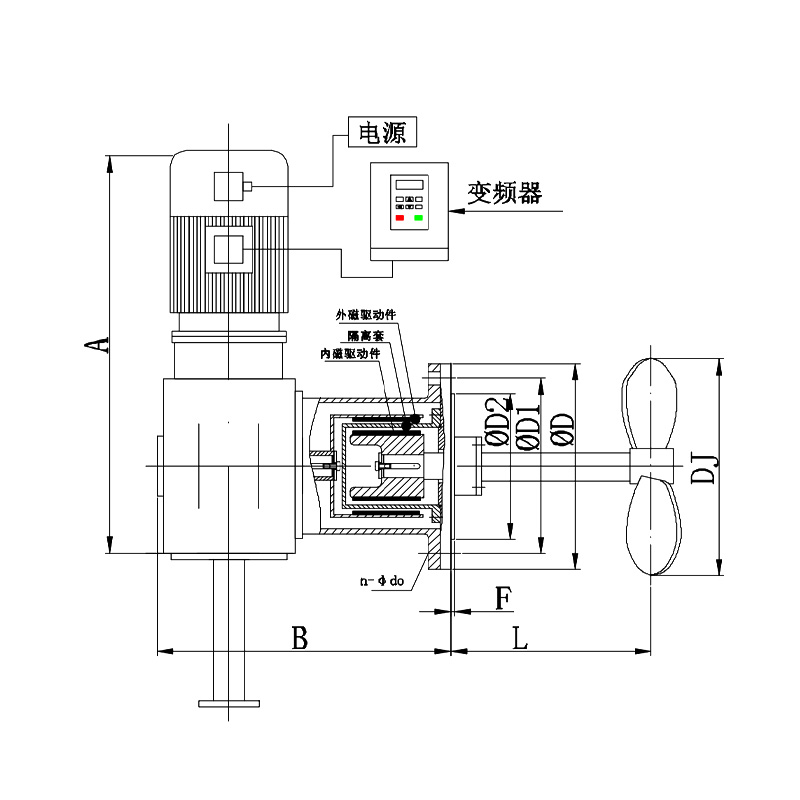

Product Parameters
Series Speed
(rpm)		 Power
( KW)		 A B L D D1 D2 f n-do DJ Weight
(Kg)
TOPC001-CMC100 0-500 2.2 800 863 Determine according to customer requirements 360 320 260 2 12-∅18 100-350 266
3
TOPC001-CMC200 0-500 4 850 783 490 445 413 3 16-∅22 300-450 533
5.5
TOPC001-CMC600  0-500 7.5 1050 819 595 555 518 3 20-∅26 400-550 795
TOPC001-CMC800  0-500 11 1380 1023 750 705 667 5 20-∅26 500-600 1050
TOPC001-CMC1200 0-500 15 1380 1023 860 860 772 5 24-∅26 500-700 1238
