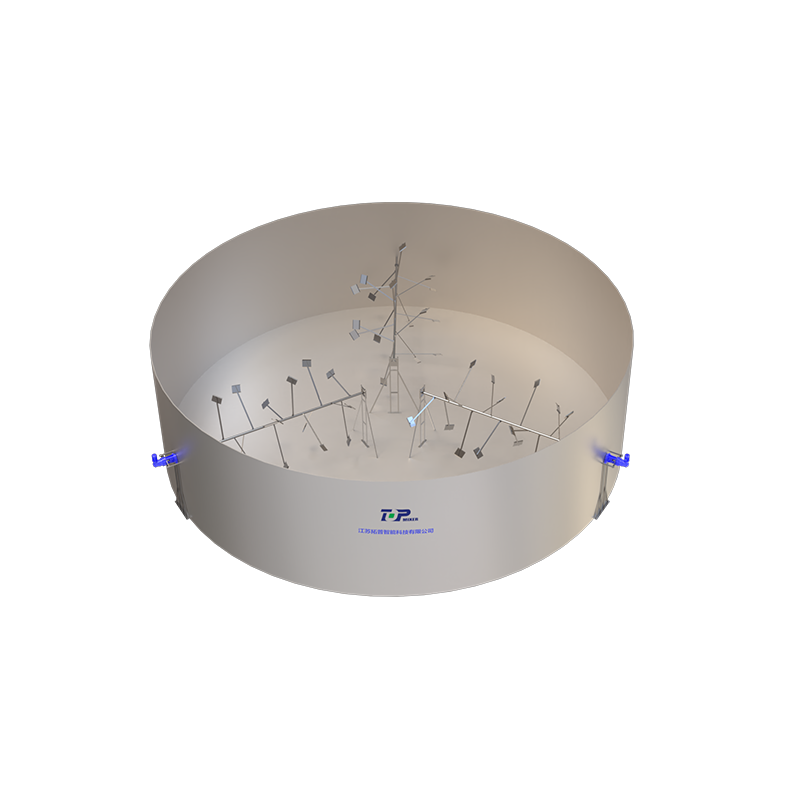

TOPC005 Side-Entry Anaerobic Fermentation Mixer

Request a Quote
Configure impeller
Remark

Remark:

● The weight in the table is approximate weight, without the weight of suspension and anchor bolts

● The flange size in the table can be replaced by European and American standards.

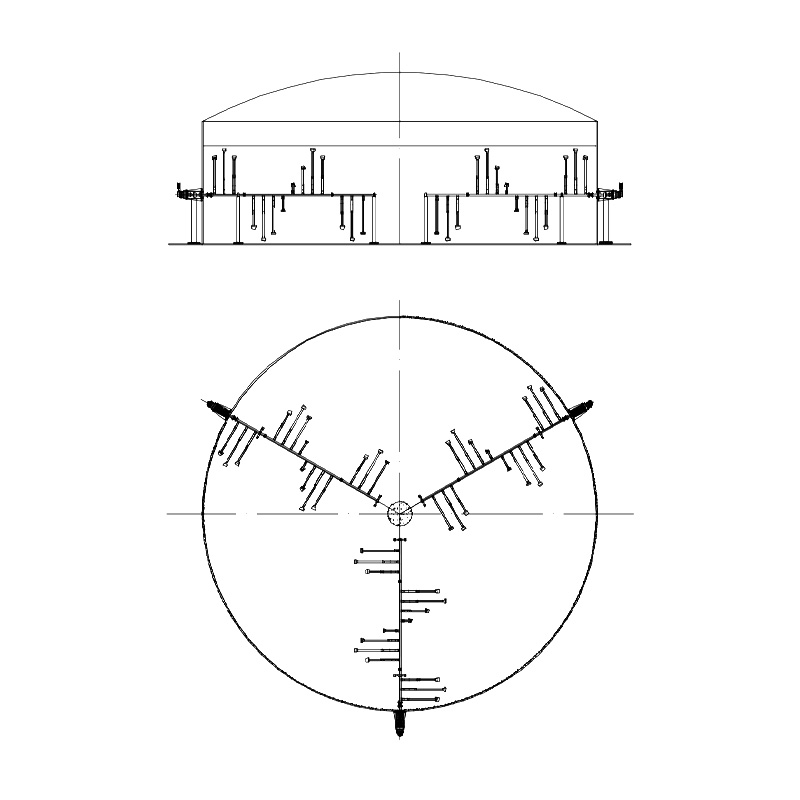

● The installation method shown is the installation pipe opening size on the side of the stirring container that can be selected during side installation.

● The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary due to the manufacturer and motor type. Please refer to the actual design.

● When the wall thickness of the stirring container is too thin and the strength is not enough, please use auxiliary reinforcement measures such as reinforcement ribs.

Product Parameters
Model Rotation(r/min) Power
(kW)		 Installation dimensions Weight(kg)
A B N-∅Z D D1 D2 S
TOPC005/1 1～5 3～4 600 683 12-∅18 360 320 260 40 ~3000
TOPC005/2 1～5 3～4 850 683 16-∅22 490 445 413 50 ~5000
TOPC005/3 1～5 5.5～7.5 1050 819 22-∅26 595 555 518 70 ~7000
TOPC005/4 1～5 5.5～7.5 1380 1023 24-∅26 750 705 667 80 ~8000
TOPC005/5 1～5 7.5～11 1580 1220 24-∅26 860 810 772 90 ~10000
