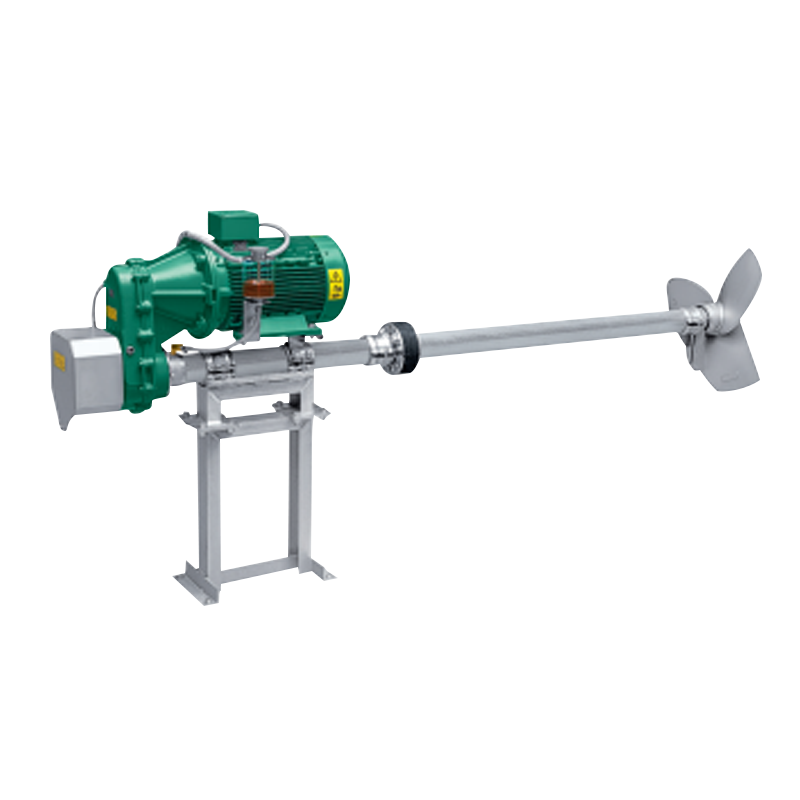

TOP3006 Long-Axis Fixed Side-Entry Mixer

TOP3006 long-shaft fixed side mixer is a kind of equipment that uses a long shaft to drive the mixing blades for mixing. It is widely used in the mixing of powder materials in the fields of metallurgy, mining, chemical industry, building materials, etc. Its working principle is to use the motor to drive the rotating shaft, so that the mixing blades on the shaft mix, thereby mixing various materials evenly.
Request a Quote
Configure impeller

TOP3006 long-shaft fixed side mixer is a kind of equipment that uses a long shaft to drive the mixing blades for mixing. It is widely used in the mixing of powder materials in the fields of metallurgy, mining, chemical industry, building materials, etc. Its working principle is to use the motor to drive the rotating shaft, so that the mixing blades on the shaft mix, thereby mixing various materials evenly.

Remark

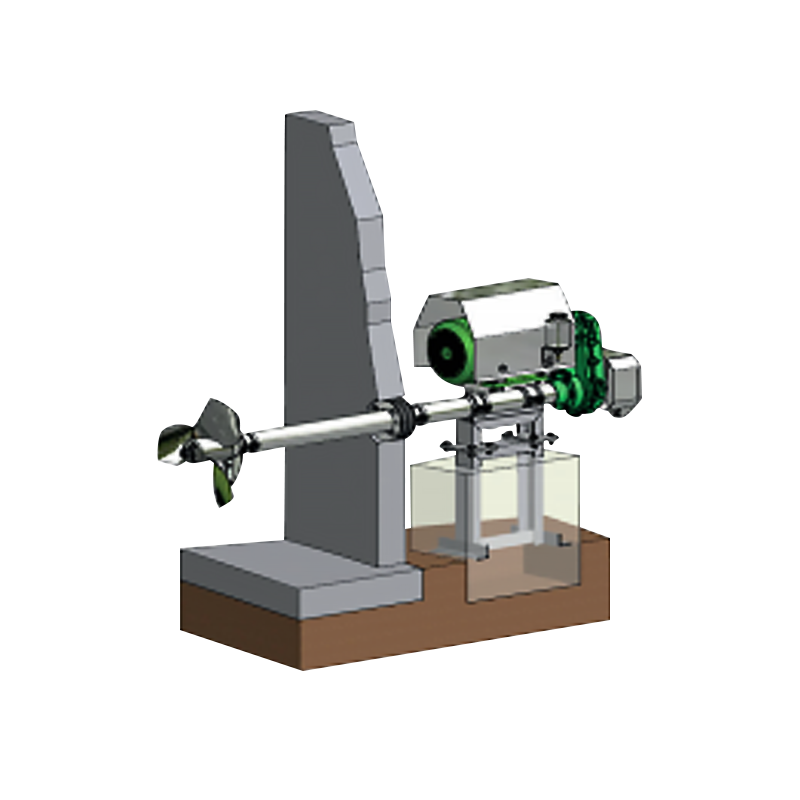

Structure:
·‌Motor‌: Provides power.
·‌Rotating shaft‌: Connects the motor and the mixing blades.
·‌Mixing blade‌: Installed on the rotating shaft, responsible for mixing materials.
·‌Fixed bracket‌: Ensures the stability and fixity of the mixer.

Application scenarios:
This mixer is suitable for various scenarios where powder materials need to be evenly mixed, such as metallurgy, mining, chemical industry, building materials and other fields. It can mix various materials, such as cement, lime, gypsum, etc., to achieve the ideal mixing effect.

Advantages of long-axis mixer:
·Simple operation: The long-axis mixer is easy to operate, without complicated personnel operation, just set the mixing time.
·Good mixing effect: The long-axis mixer can mix various materials evenly, so as to achieve the ideal mixing effect.
·Time saving: The long-axis mixer can efficiently mix various materials, thereby saving production time and improving production efficiency.
·Simple maintenance: The maintenance of the long-axis mixer is very simple, only regular cleaning and maintenance are required, and a large amount of manpower and material resources are not required.
· Guaranteed quality: The long-shaft mixer uses high-quality materials to ensure its service life and stability.
In summary, the long-shaft mixer is a very efficient mixing equipment with the advantages of simple operation and good mixing effect. It has been widely used in industrial production, and I believe it will play a more important role in various fields in the future.

Product Parameters

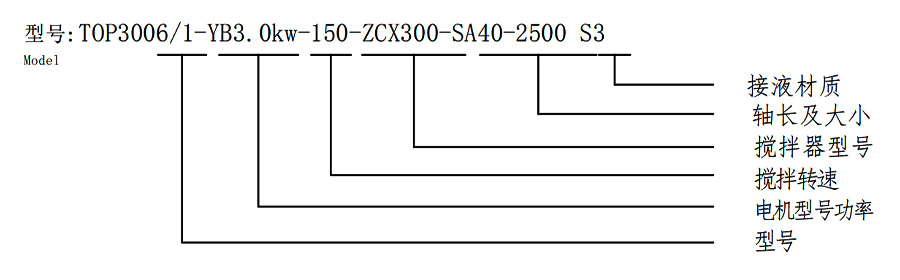

Model Speed ​​(r/min) Power (kW) Paddle diameter (mm) Axial force (100N) Flow rate (m/s)
TOP3006/1 400 11 580 2.2 3.4
TOP3006/2 400 15 620 2.6 3.9
TOP3006/3 400 18.5 660 3.25 4.3
