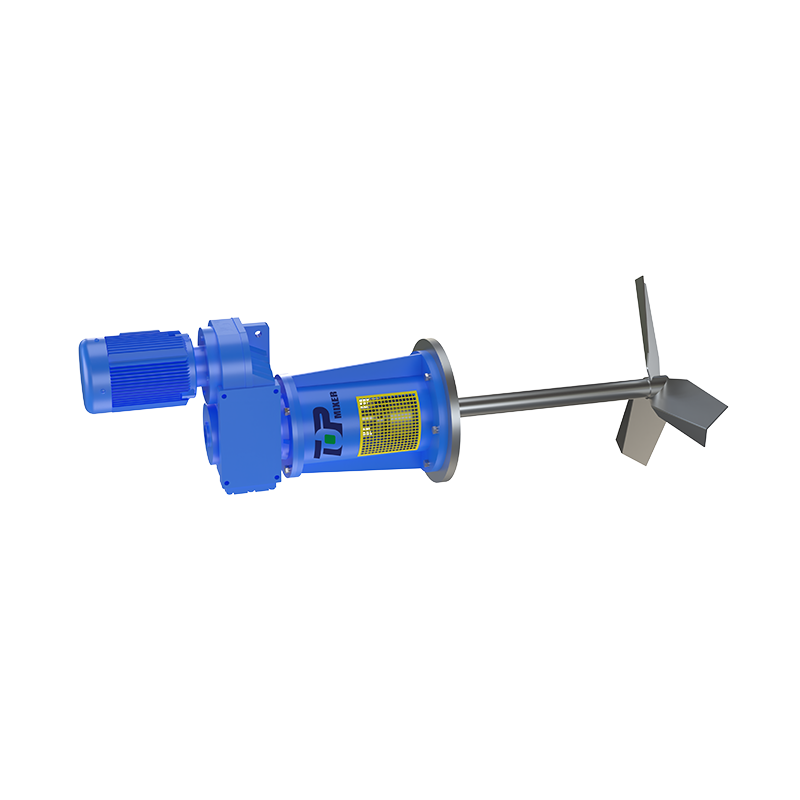

TOPC003CR Side-Entry Mixer

Based on TOP's many years of experience in unique technology, and the application of advanced measurement and analysis technology, we designed high-efficiency impellers with good mixing effects and used them on our CR mixers. ● Top CR mixer can provide side-mounted stirring from 0.55KW to 30KW. All products are strictly inspected by TOP engineers to ensure the high reliability of the products. ● The mechanical structure is simple and compact, which is easy to operate, maintain, and repair, and everything is for the user's consideration. ● The original impeller form increases the discharge volume significantly. ● Various shaft seal types meet different materials and working conditions. ● Firm motor fixation reduces vibration significantly. ● High-efficiency gear transmission, oil resistant, heat resistant, durable, and low noise. ● Deep groove ball bearing system ensures long-term use.
Request a Quote
Configure impeller

Based on TOP's many years of experience in unique technology, and the application of advanced measurement and analysis technology, we designed high-efficiency impellers with good mixing effects and used them on our CR mixers.

● Top CR mixer can provide side-mounted stirring from 0.55KW to 30KW. All products are strictly inspected by TOP engineers to ensure the high reliability of the products.

● The mechanical structure is simple and compact, which is easy to operate, maintain, and repair, and everything is for the user's consideration.

● The original impeller form increases the discharge volume significantly.

● Various shaft seal types meet different materials and working conditions.

● Firm motor fixation reduces vibration significantly.

● High-efficiency gear transmission, oil resistant, heat resistant, durable, and low noise.

● Deep groove ball bearing system ensures long-term use.

Remark

Configure impeller

CR gear mixers are equipped with a ZCX impeller (vertical type) and a KCX impeller (side-mounted type). In addition to the standard configuration of impellers, Top can also provide users with a more suitable impeller form based on the actual situation of the user to ensure a better stirring effect for the user.

● The weight in the table is the approximate weight and does not include the weight of the stirring shaft and impeller inside the container.

● The size L in the table is determined based on the user's container size.

● The size DJ data in the table is determined by the Top Company based on the user's stirring purpose, stirring capacity, and physical properties parameters, and the actual situation shall prevail.

● The weight of the motor is the approximate weight of an ordinary indoor motor and can vary according to the approximate weight of the motor, the motor manufacturer, and the type.

Remark:

● The weight in the table is approximately weight, without the weight of suspension and anchor bolts.

● The flange size in the table can be replaced by European and American standards.

● The installation method shown is the installation pipe opening size on the side of the stirring container that can be selected during side installation.

● The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary due to the manufacturer and motor type. Please refer to the actual design.

● When the wall thickness of the stirring container is too thin and the strength is not enough, please use auxiliary reinforcement measures such as reinforcement ribs.

Product Parameters

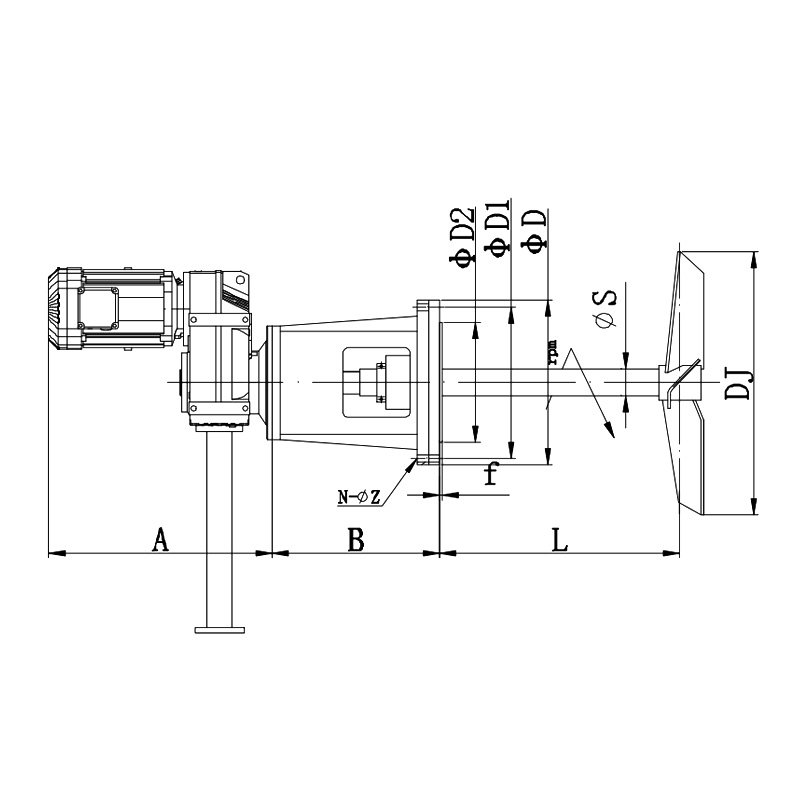

Model Rotation(r/min) Power(kW) Installation dimensions Weight(kg)
A B N-∅Z D D1 D2 S
TOPC003-CR1 120～500 0.55～1.5 600 683 12-∅18 360 320 260 40 ~266
TOPC003-CR2 120～500 1.5～4 850 683 16-∅22 490 445 413 50 ~533
TOPC003-CR3 120～500 4～11 1050 819 22-∅26 595 555 518 70 ~895
TOPC003-CR4 120～500 11～22 1380 1023 24-∅26 750 705 667 80 ~1238
TOPC003-CR5 120～500 22～30 1580 1220 24-∅26 860 810 772 90 ~1455
