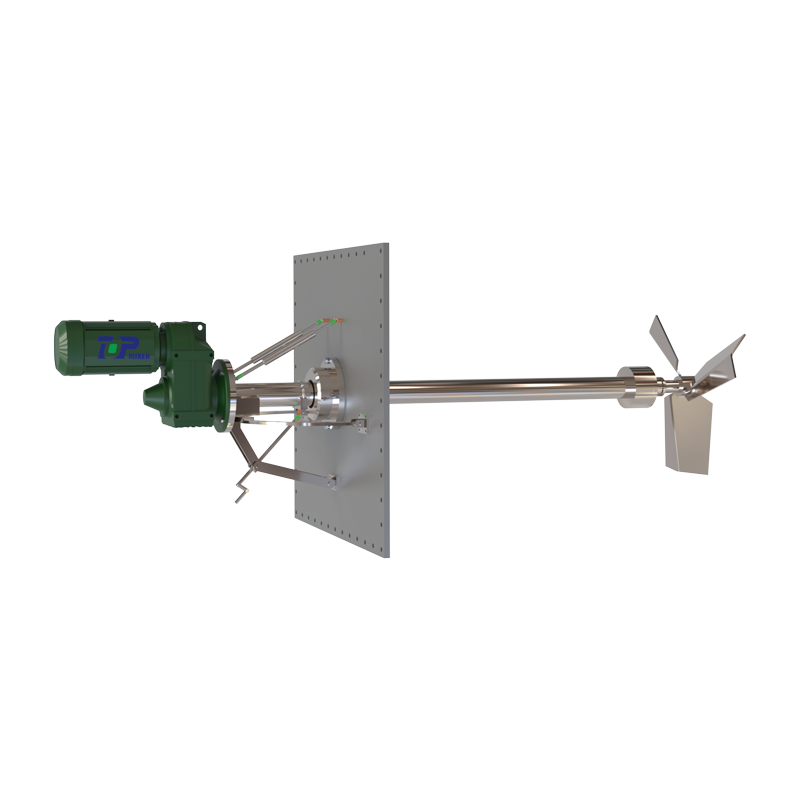

TOPC004 Adjustable Angle Side-Entry Mixer

Adjustable angle side-in mixers are suitable for the reaction, stirring and storage of liquid, solid-liquid, and other materials in various industries. Suitable for biogas, petrochemicals, environmental protection, and other industries, especially large storage tanks (water collecting tanks). The structure of the swing shaft is mainly used in situations where the agitator needs to be adjusted intermittently, especially for large storage tanks and cracking of the agitator. With the same power consumption, a larger stirring range can be achieved to avoid blind spots. When installed in the middle and lower part of the storage tank, its main function is to suspend and disperse and form a circulation. When installing it on the upper part of the water tank, its main function is to strengthen circulation and avoid floating water layers. This series of agitators can be equipped with an agitator anti-hanging device and a leak indicator.
Request a Quote
Configure impeller

Adjustable angle side-in mixers are suitable for the reaction, stirring and storage of liquid, solid-liquid, and other materials in various industries. Suitable for biogas, petrochemicals, environmental protection, and other industries, especially large storage tanks (water collecting tanks). The structure of the swing shaft is mainly used in situations where the agitator needs to be adjusted intermittently, especially for large storage tanks and cracking of the agitator. With the same power consumption, a larger stirring range can be achieved to avoid blind spots. When installed in the middle and lower part of the storage tank, its main function is to suspend and disperse and form a circulation. When installing it on the upper part of the water tank, its main function is to strengthen circulation and avoid floating water layers. This series of agitators can be equipped with an agitator anti-hanging device and a leak indicator.

Remark

● Precision-designed gears have a compact structure, higher strength and longer service life.

● The service life of the solid bearing exceeds 100,000 hours.

● One axis design ensures accuracy and provides stability.

● Four-direction angle adjustment can provide a more effective stirring performance.

● Specially designed seals can be used in almost all situations.

● Provides electric or manual rotating devices.

● A specially designed cleaning edge impeller prevents fiber wrap.

Remark:

● The weight in the table is approximately weight, without the weight of suspension and anchor bolts.

● The flange size in the table can be replaced by European and American standards.

● The installation method shown is the installation pipe opening size on the side of the stirring container that can be selected during side installation.

● The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary due to the manufacturer and motor type. Please refer to the actual design.

● When the wall thickness of the stirring container is too thin and the strength is not enough, please use auxiliary reinforcement measures such as reinforcement ribs.

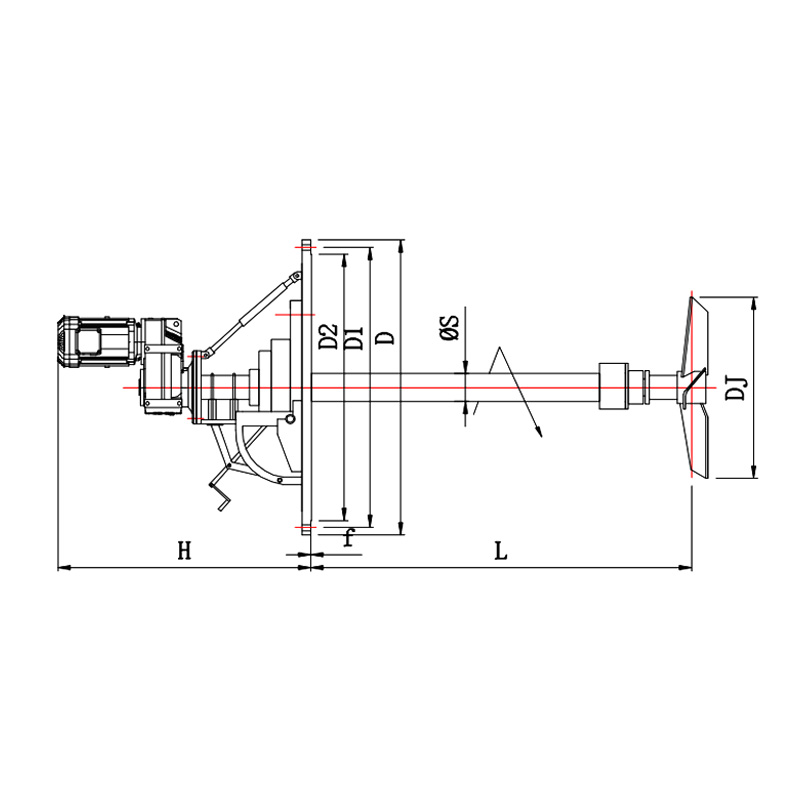

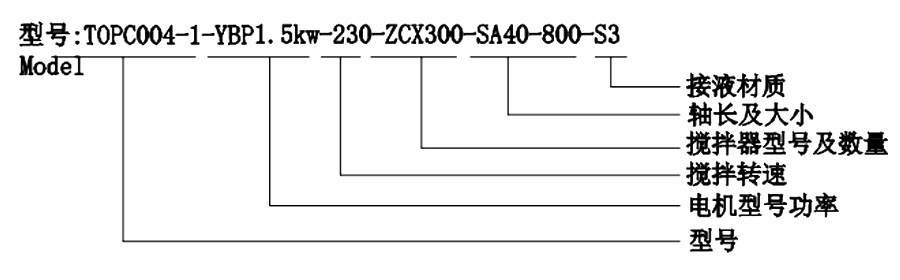

Product Parameters
Model Rotation(r/min) Power
(kW)		 Installation dimensions Weight(kg)
A B N-∅Z D D1 D2 S
TOPC004/1 120~500 0.55～1.5 600 683 12-∅18 360 320 260 40 ~266
TOPC004/2 120~500 1.5～4 850 683 16-∅22 490 445 413 50 ~533
TOPC004/3 120～500 4～11 1050 819 22-∅26 595 555 518 70 ~895
TOPC004/4 120～500 11～22 1380 1023 24-∅26 750 705 667 80 ~1238
TOPC004/5 120~500 22～30 1580 1220 24-∅26 860 810 772 90 ~1455
PREV：TOPC005 Side-Entry Anaerobic Fermentation MixerNEXT：TOPC003CR Side-Entry Mixer
