Home / Product / Magnetic Drive Mixer / Magnetic Side-Entry Mixer

Magnetic Side-Entry Mixer

This series of mixers adopts an isolation sleeve static sealing structure and uses a strong magnetic field to transmit torque without contact, which can achieve permanent zero leakage. It is usually used in occasions such as flammable and explosive, high-pressure, and toxic media. Advantages: The high mixing effect that a side-in mixer can obtain when power consumption is consumed, the power is only 1/3-2/3 of that of a general center mixer. Note: When selecting a model, users need to provide whether they contain solid particles and corrosive media. Remark: 1. The weight in the table is approximate weight and does not include the weight of suspension or foot support. 2. The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary depending on the manufacturer and type of motor. Please use the design as the standard. 3. When the wall thickness of the mixing container is too thin and the strength is not enough, please use auxiliary reinforcement measures such as suspension and foot support. 4. The mixer and shaft length can also be customized according to user requirements.
Request a Quote
Configure impeller

This series of mixers adopts an isolation sleeve static sealing structure and uses a strong magnetic field to transmit torque without contact, which can achieve permanent zero leakage. It is usually used in occasions such as flammable and explosive, high-pressure, and toxic media.

Advantages: The high mixing effect that a side-in mixer can obtain when power consumption is consumed, the power is only 1/3-2/3 of that of a general center mixer.

Note: When selecting a model, users need to provide whether they contain solid particles and corrosive media.

Remark:

1. The weight in the table is approximate weight and does not include the weight of suspension or foot support.

2. The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary depending on the manufacturer and type of motor. Please use the design as the standard.

3. When the wall thickness of the mixing container is too thin and the strength is not enough, please use auxiliary reinforcement measures such as suspension and foot support.

4. The mixer and shaft length can also be customized according to user requirements.

Remark

Remark:

● The weight in the table is approximate weight, without the weight of suspension and anchor bolts.

● The flange size in the table can be replaced by European and American standards.

● The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary due to the manufacturer and motor type. Please refer to the actual design.

● When the wall thickness of the stirring container is too thin and the strength is not enough, please use reinforcement ribs and other auxiliary materials.

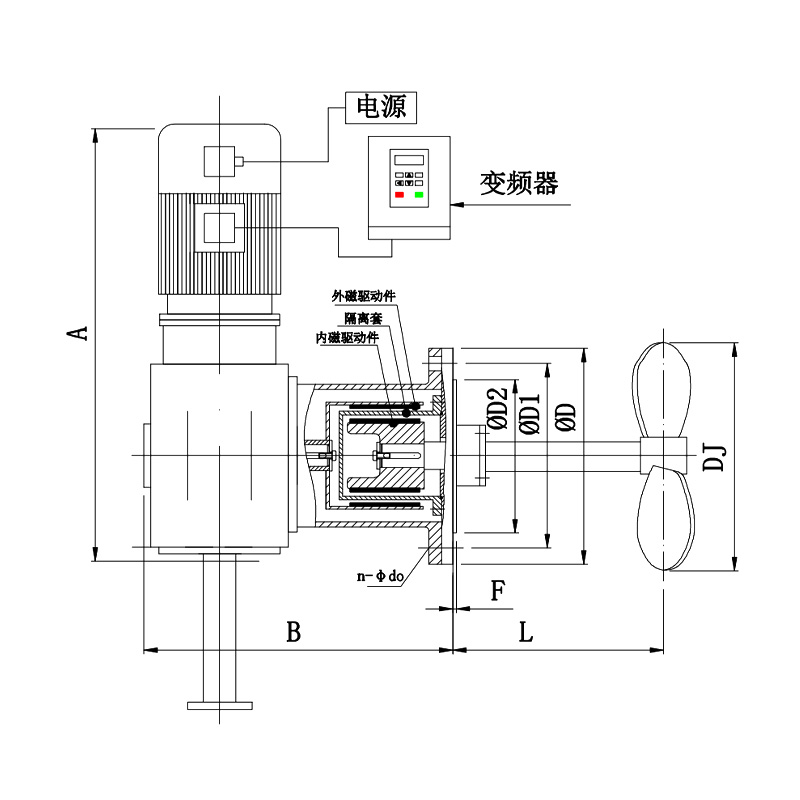

Product Parameters
Series Speed
(rpm)		 Power
( KW)		 A B L D D1 D2 f n-do DJ Weight
(Kg)
CMC100 0-500 2.2 800 863 Determine according to customer requirements 360 320 260 2 12-∅18 100-350 266
3
CMC200 0-500 4 850 783 490 445 413 3 16-∅22 300-450 533
5.5
CMC600  0-500 7.5 1050 819 595 555 518 3 20-∅26 400-550 795
CMC800  0-500 11 1380 1023 750 705 667 5 20-∅26 500-600 1050
CMC1200 0-500 15 1380 1023 860 860 772 5 24-∅26 500-700 1238
