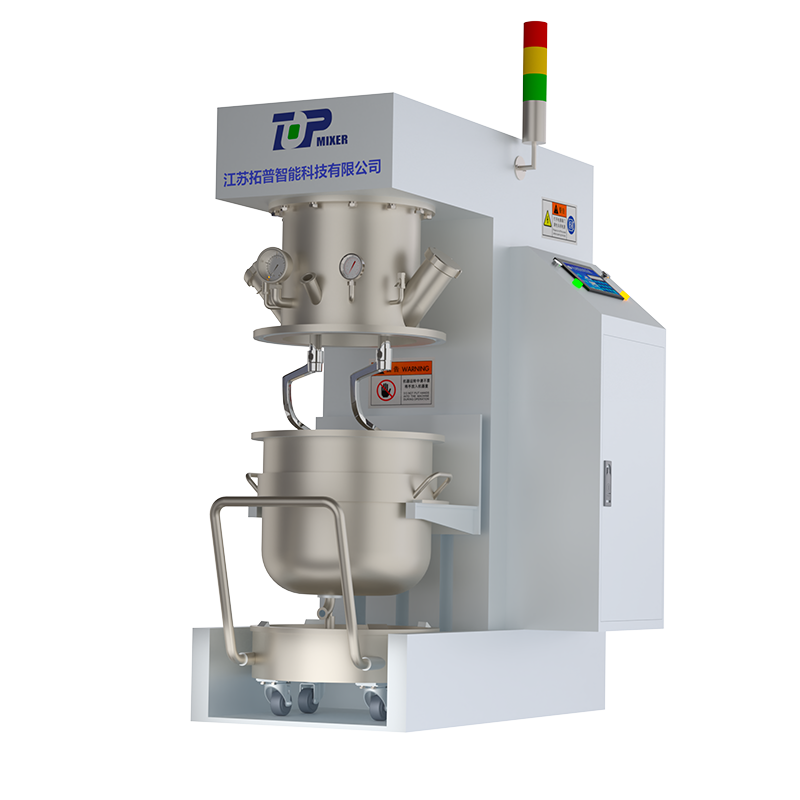

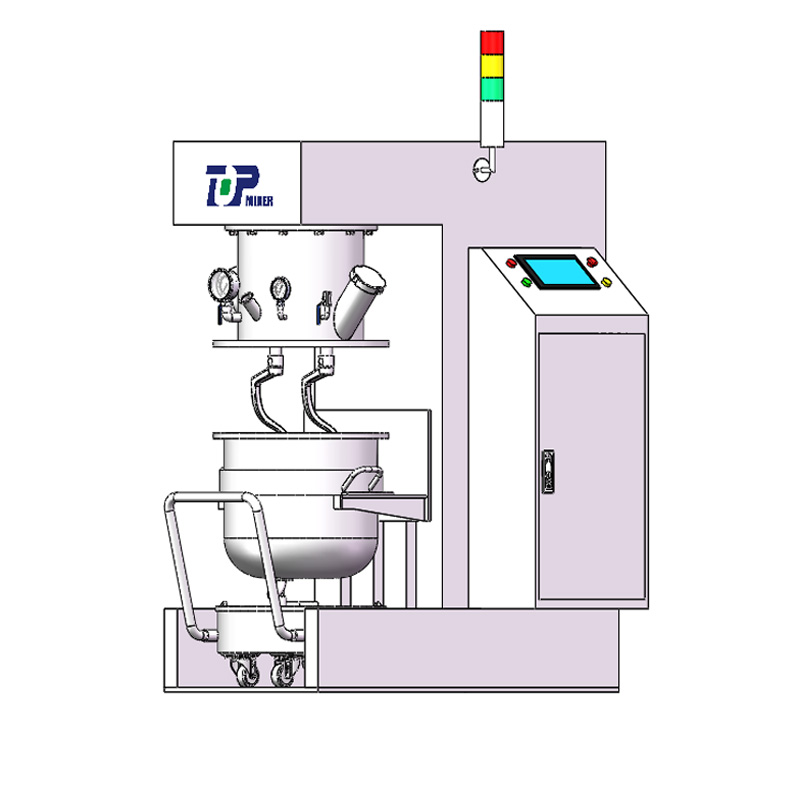

TOPH2021 Series ZG Pilot Planetary Mixer

During the working process of the 21 series ZG type pilot planetary mixer, two parallel mixing pads operate in a fixed rotation ratio set, and rotate quickly along the mixing drum. At the same time, there is a rotating scraper that operates simultaneously with the revolution in the mixing drum, which keeps rotating, so that the material moves from the inner wall of the mixing drum to the vicinity of the mixing pad. The direction of the mixer can be reversible in the same direction and reversible in order to achieve different shearing purposes. The other two high-speed dispersed gear discs of separate power units also operate along the mixing barrel along with the rotation, performing efficient dispersion, emulsification, and high-speed dispersed gear discs to be variable frequency speed regulation, and can be customized according to the production process. This type of movement can enable the material to achieve a completely uniform emulsification and mixing effect in a short time and is especially suitable for the dispersion and mixing of solid-solid phase, solid-liquid phase, and liquid-liquid phase.
Request a Quote
Configure impeller

During the working process of the 21 series ZG type pilot planetary mixer, two parallel mixing pads operate in a fixed rotation ratio set, and rotate quickly along the mixing drum. At the same time, there is a rotating scraper that operates simultaneously with the revolution in the mixing drum, which keeps rotating, so that the material moves from the inner wall of the mixing drum to the vicinity of the mixing pad. The direction of the mixer can be reversible in the same direction and reversible in order to achieve different shearing purposes. The other two high-speed dispersed gear discs of separate power units also operate along the mixing barrel along with the rotation, performing efficient dispersion, emulsification, and high-speed dispersed gear discs to be variable frequency speed regulation, and can be customized according to the production process.

This type of movement can enable the material to achieve a completely uniform emulsification and mixing effect in a short time and is especially suitable for the dispersion and mixing of solid-solid phase, solid-liquid phase, and liquid-liquid phase.

Remark
Product Parameters
Model Stirring power (KW) Effective volume (L) Container size (mm) Extreme vacuum (Pas) Electric push rod power (KW) Weight (Kg)
TOPH2021-20 3 20 ∅300x300 -0.09 0.4 700
TOPH2021-30 4 30 ∅350x350 -0.09 0.4 800
TOPH2021-50 5.5 50 ∅400x400 -0.09 0.75 1000
TOPH2021-100 7.5 80 ∅500x500 -0.09 0.75 1500
