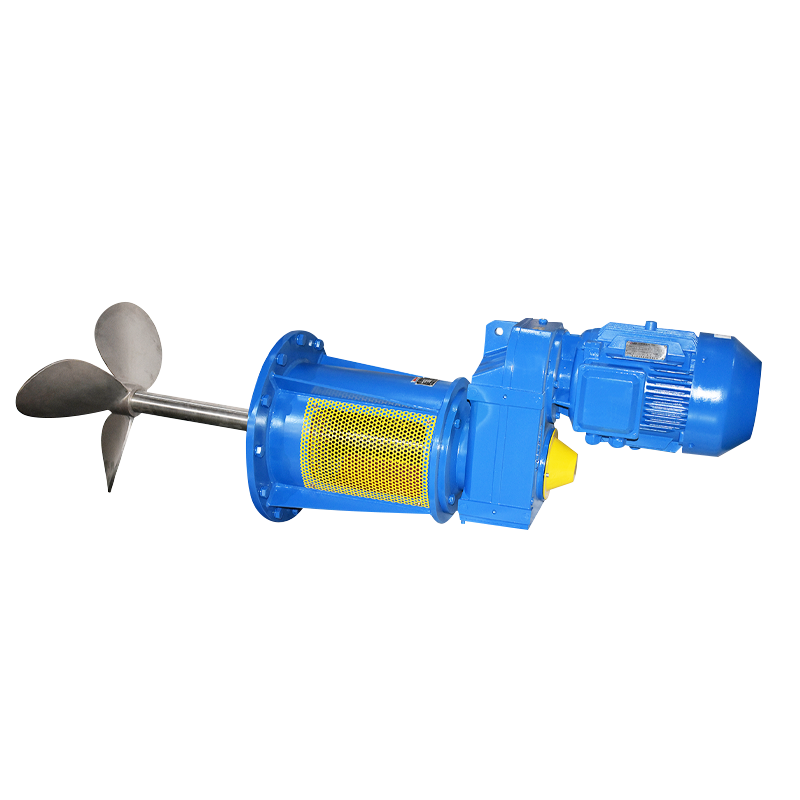

TOP3005 Side-Entry Gear-Driven Mixer

Based on TOP's many years of experience and unique technology, and the application of advanced measurement and analysis technology, we have designed an efficient impeller with better mixing effect, which is used in our TOP3005 mixer. · TOP CR mixer can provide side-mounted mixing from 0.55KW to 30KW. All products are strictly tested by TOP engineers to ensure the high reliability of the products. · The mechanical structure is simple and compact, easy to operate, maintain and repair, all for the sake of users.· The original impeller form significantly increases the discharge volume.· A variety of shaft seal types meet different materials and working conditions· The firm motor fixation greatly reduces vibration.· Efficient gear transmission, oil-resistant, heat-resistant, durable, and low noise.· Deep groove ball bearing system to ensure long-term use.
Request a Quote
Configure impeller

Based on TOP's many years of experience and unique technology, and the application of advanced measurement and analysis technology, we have designed an efficient impeller with better mixing effect, which is used in our TOP3005 mixer. · TOP CR mixer can provide side-mounted mixing from 0.55KW to 30KW. All products are strictly tested by TOP engineers to ensure the high reliability of the products. · The mechanical structure is simple and compact, easy to operate, maintain and repair, all for the sake of users.
· The original impeller form significantly increases the discharge volume.
· A variety of shaft seal types meet different materials and working conditions
· The firm motor fixation greatly reduces vibration.
· Efficient gear transmission, oil-resistant, heat-resistant, durable, and low noise.
· Deep groove ball bearing system to ensure long-term use.

Remark

Impeller configuration
TOP3005 gear mixer is equipped with ZCX impeller (vertical) and KCX impeller (side mounted) as standard. In addition to the standard impeller, TOP can also provide users with more suitable impeller forms according to the actual situation of the user to ensure better mixing effect.
·The weight in the table is approximate weight, excluding the weight of the mixing shaft and impeller inside the container.
·The dimension L in the table is determined according to the user's container size.
·The dimension DJ data in the table is determined by TOP according to the user's mixing purpose, mixing capacity and physical parameters, and the actual situation shall prevail.
·The weight of the motor is the approximate weight of ordinary indoor motors, which may vary according to the motor weight, motor manufacturer and type.

Remarks:
·The weight in the table is approximate weight, excluding the weight of suspension and anchor bolts.
·The flange size in the table can be replaced by European standards and American standards.
·The installation method shown is the installation nozzle size on the side of the mixing container that can be selected when side-mounted.
·The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary due to different manufacturers and motor types. Please refer to the actual design.
·When the wall thickness of the mixing container is too thin and the strength is insufficient, please use auxiliary reinforcement measures such as reinforcing ribs.

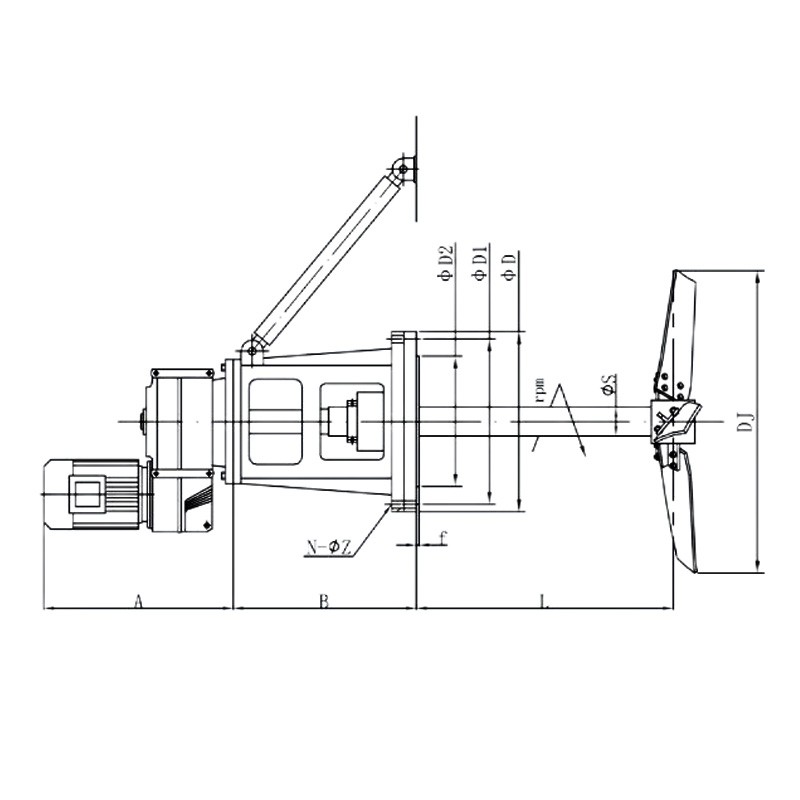

Product Parameters
Model Speed ​​(r/min) Power (kW) Installation dimensions
D D1 D2 N-∅Z S DXJ
TOP3005/1 120～350 0.55～1.5 360 320 260 12-∅18 40 45
TOP3005/2 120～350 1.5～4.0 490 445 413 16-∅22 50 45
TOP3005/3 120～350 4.0～11.0 595 555 518  22-∅26 70 55
TOP3005/4 120～350 11.0～22.0 750 705 667  24-∅26 80 65
TOP3005/5 120～350 22.0～30.0 860 810 772  24-∅26 90 65
