This series of mixers adopts an isolated static sealing structure, uses a strong magnetic field to transmit torque without contact, and can achieve permanent zero leakage. It is usually used in occasions such as flammable, explosive, high-pressure, and toxic media.
The product produced by our company is between -60°C and 350C, the pressure is between -0.1~22Mpa, the output torque is <5000N.m, and the stirring is read <1000rpm. Users must indicate their use when selecting our company's products. Temperature and pressure, whether there are solid particles and materials corrosion suddenly, connect Frank to customize according to other user standards.

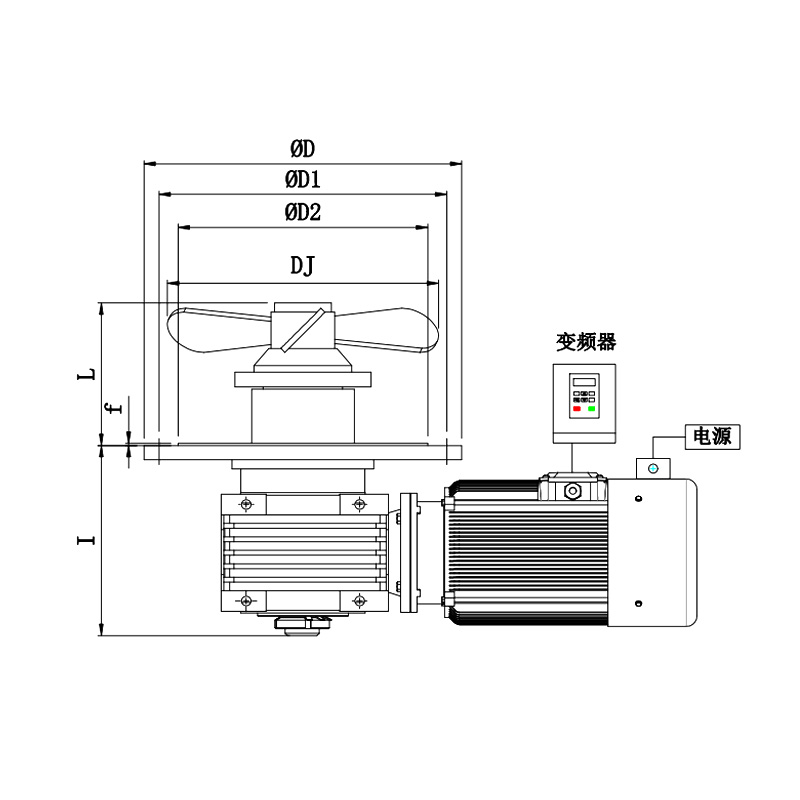

| Model | Power (kW) |
Rotation(r/min) | Installation dimensions | Appearance size | Stir-up form | |||||
| D | D1 | D2 | N-∅Z | f | L | H | ||||
| TDC30 | 0.75~1.5 | 0~1000 | 600 | 683 | 260 | 8-∅18 | 3 | 320 | 165 | Propulsion type, paddle type |
| TDC50 | 2.2~4 | 0~1000 | 850 | 683 | 413 | 8-∅18 | 3 | 450 | 186 | Propulsion type, paddle type |
| TDC200 | 5.5 | 0~1000 | 1050 | 819 | 518 | 12-∅18 | 3 | 530 | 243 | Propulsion type, paddle type |
| TDC800 | 7.5 | 0~1000 | 1380 | 1023 | 667 | 12-∅18 | 5 | 650 | 266 | Propulsion type, paddle type |
| TDC1600 | 11 | 0~1000 | 1580 | 1220 | 772 | 12-∅18 | 5 | 700 | 338 | Propulsion type, paddle type |
