Home / Product / Mixing Mixer / TOPH51 Series FL High Speed Disperser

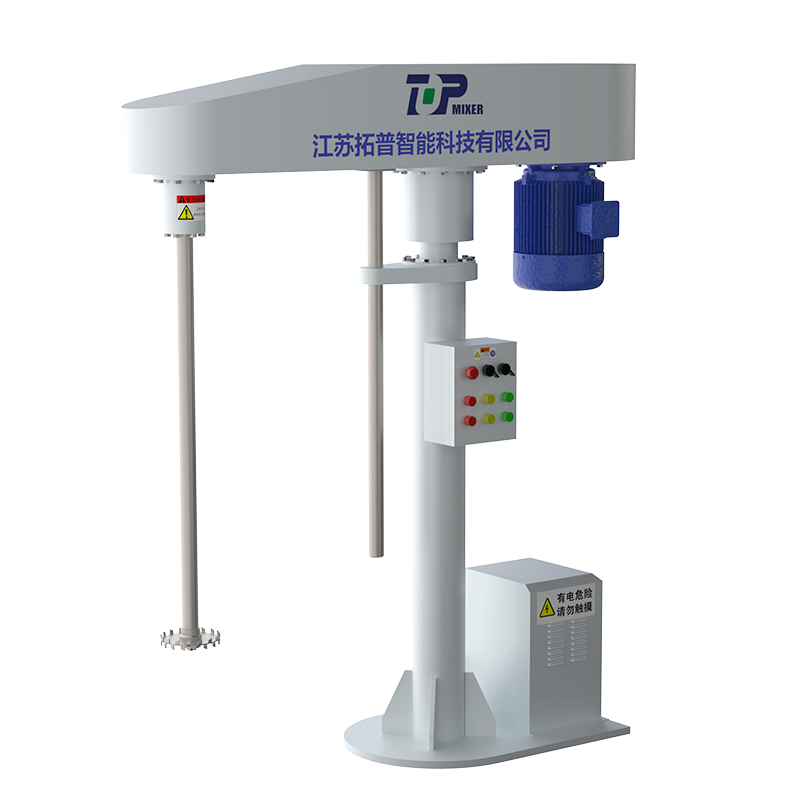

TOPH51 Series FL High Speed Disperser

This series of dispersion mixers can be equipped with a toothed dispersion tray for high-speed dispersion stirring, or various types of stirring machines for stirring on various occasions. This series of mixers is usually used to stir, dissolve, and disperse liquid and liquid solid-phase materials in the chemical industry such as coatings, dyes, pigments, and adhesives.
Request a Quote
Configure impeller

This series of dispersion mixers can be equipped with a toothed dispersion tray for high-speed dispersion stirring, or various types of stirring machines for stirring on various occasions. This series of mixers is usually used to stir, dissolve, and disperse liquid and liquid solid-phase materials in the chemical industry such as coatings, dyes, pigments, and adhesives.

Remark

Features

During stirring and dispersion, the air absorption is very small, and the mixing and mixing are both excellent. Stirring with medium or high speed can make the material dissolve quickly and the particles become smaller.

Product Parameters
Model Rack FG200 Rack FG250 Rack FG350
Parameter FL2.2 FL4 FL5.5/FL7.5 FL11 FL22
Host power (kW) 2.2 4 5.5/7.5 11 22
Dispersing shaft speed Electromagnetic speed regulation Frequency conversion speed regulation (r/min) 0-1250
0-1450		 0-1250
0-1450		 0-1250
0-1450		 0-1250
0-1450		 0-1250
0-1450
Dispersing wheel diameter (mm) ∅180-200 ∅200 ∅250 ∅250 ∅300-350
Lift stroke (mm) 600 800 900 900 1200
Pump power (KW) 0.55 0.55 0.75 0.75 1.1
Tank capacity (L) 100 200 300-500 500-800 1000-1500
Weight (kg) 500 500 600 800 1500

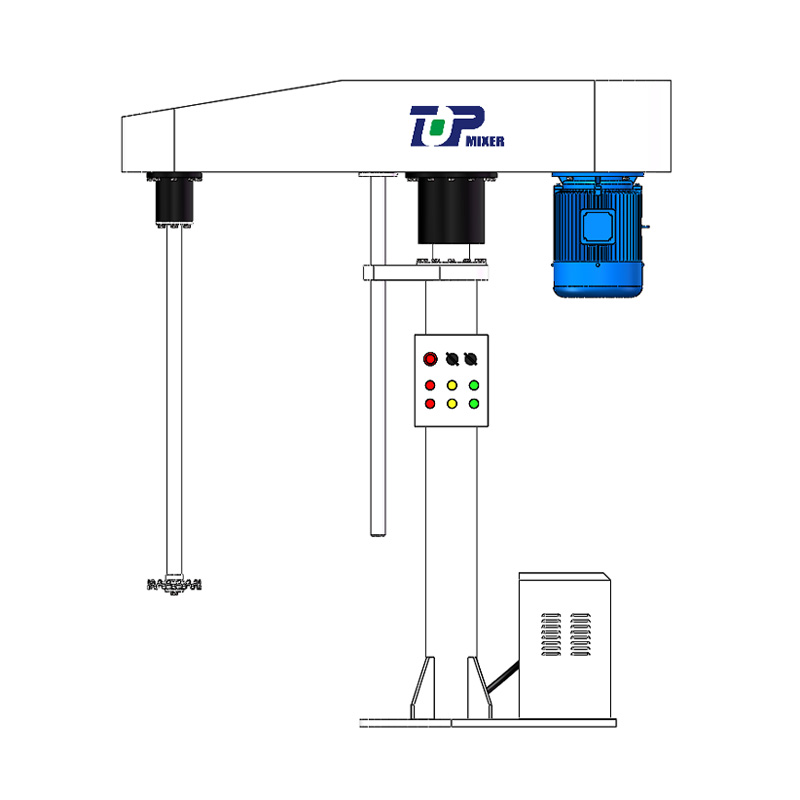

External dimensions A (mm) 1400 1700 1820 1820 2400
B (mm) 940 1500 1800 1800 2200
C (mm) 350 600 700 700 1100
W  (mm) 500 580 900 900 1200
