Home / Product / Mixing Mixer / TOPH53 Series SY Two-Speed Hydraulic Mixer

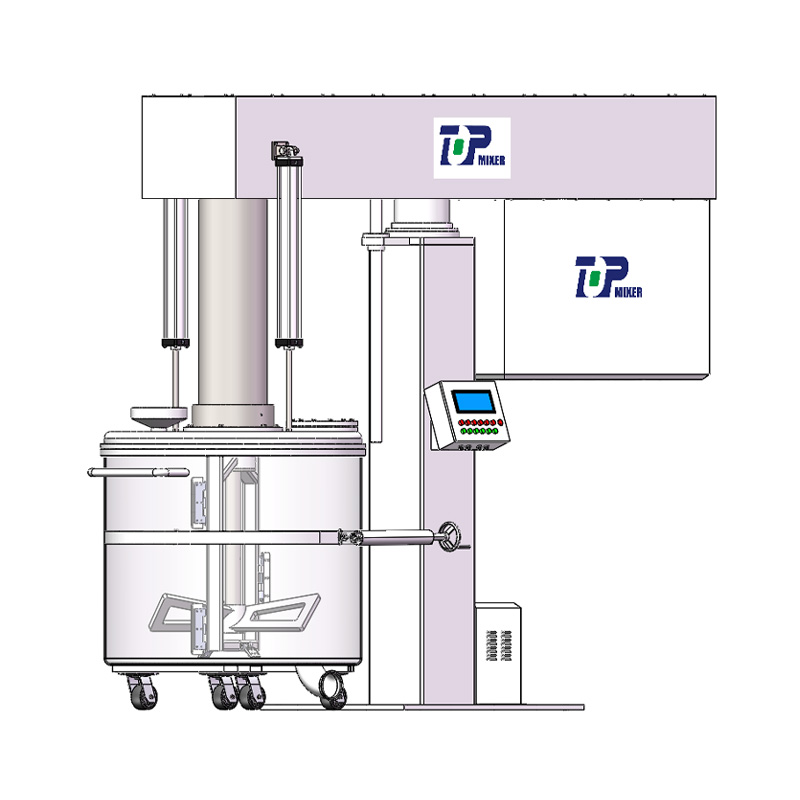

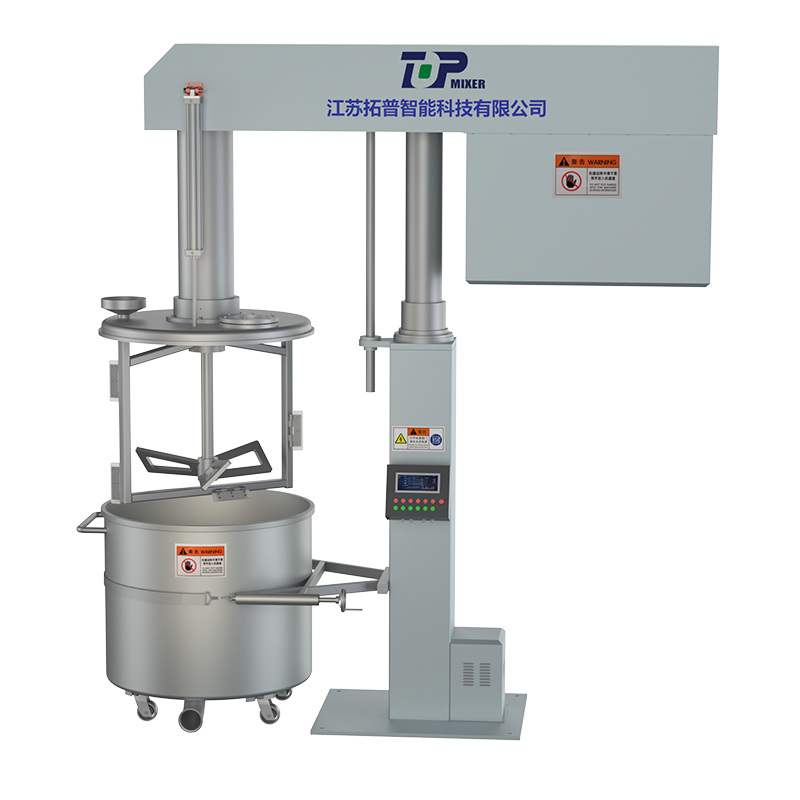

TOPH53 Series SY Two-Speed Hydraulic Mixer

The dual-speed multi-functional powerful dispersion mixer is a product with strong dispersion and stirring functions developed on the basis of a hydraulic lifting single-axis mixer. It has a concentric double-axis design; it has an extremely strong shearing effect and extremely high mixing efficiency; this product has good adaptability to medium and high viscosity and thixotropic materials, and a variety of stirring methods are available. Conventional such as anchor type, butterfly type, spiral type, frame type, etc., dispersion emulsification and stirring can be carried out simultaneously, driving the three-dimensional movement of edge materials and accelerating mixing. Wall scraping devices can also be installed to prevent the materials from sticking to the wall, which is highly adaptable and can be customized according to the characteristics of customers' materials and production process requirements.
Request a Quote
Configure impeller

The dual-speed multi-functional powerful dispersion mixer is a product with strong dispersion and stirring functions developed on the basis of a hydraulic lifting single-axis mixer. It has a concentric double-axis design; it has an extremely strong shearing effect and extremely high mixing efficiency; this product has good adaptability to medium and high viscosity and thixotropic materials, and a variety of stirring methods are available. Conventional such as anchor type, butterfly type, spiral type, frame type, etc., dispersion emulsification and stirring can be carried out simultaneously, driving the three-dimensional movement of edge materials and accelerating mixing. Wall scraping devices can also be installed to prevent the materials from sticking to the wall, which is highly adaptable and can be customized according to the characteristics of customers' materials and production process requirements.

Remark

Material Viscosity: ≤1000000cps

Production Capacity: 100-2000L

Application Field: Suitable for dispersing and mixing materials in coatings, putty, inks, adhesives, energy, electronics and electrical appliances, pharmaceuticals, cosmetics, food, and other industries.

Applicable materials: Various slurries with a material viscosity below 100000 cps and a solid content below 90%; such as battery slurry, solder paste, ceramic slurry, silicone ink, sealant, structural glue, soft ointment, jam, etc., more than a thousand kinds of materials.

How it works

The stirring paddle rotates in a fixed direction under the drive of the power unit; during the rotation process, the material is driven to rotate in axial and radial directions. The materials in the mixer have both axial and circular motions, so there are several stirring forms such as shear stirring and diffusion stirring. It can effectively stir and mix the materials quickly. The dispersion disk runs at high speed, causing the material to flow in an annular shape, creating a strong vortex, which descends to the bottom of the vortex in a spiral shape. A strong shear impact and friction occur between the particles, achieving rapid wastewater and dissolution functions. The stirring plate is moved through circular motion, which produces a better radial effect, accelerates material circulation, and improves dispersion efficiency. The hydraulic lifting mixer drives the hydraulic plunger to lift and lower through the hydraulic pump, driving the entire transmission mechanism and working group to lift and lower.

Product Parameters
Model Stirring power (kW) Effective volume (L) Container size (mm) Extreme vacuum (Pas) Electro-hydraulic power (kW) Equipment weight (kg)
TOPH2053-100 4 100L ∅500*600 -0.09 0.55 550
TOPH2053-200 5.5 200L ∅600*800 -0.09 0.55 750
TOPH2053-300 7.5 300L ∅700*800 -0.09 0.75 1100
TOPH2053-500 11 500L ∅800*1000 -0.09 0.75 1500
TOPH2053-800 15 800L ∅1000*1000 -0.09 0.75 1500
TOPH2053-1000 18.5 1000L ∅1100*1100 -0.09 1.1 2200
TOPH2053-1500 22 1500L ∅1200*1400 -0.09 1.1 2500
