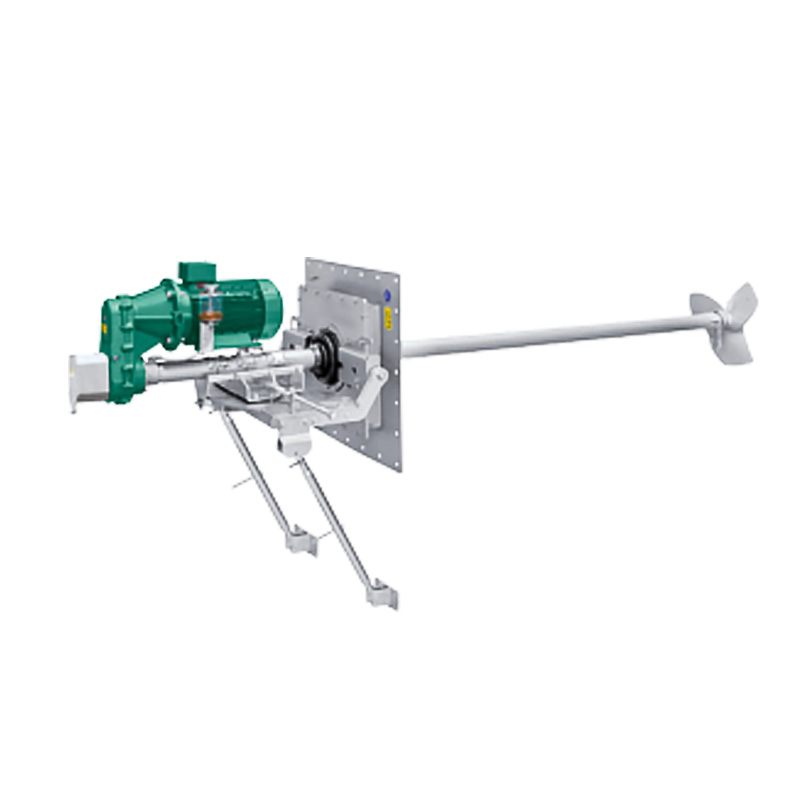

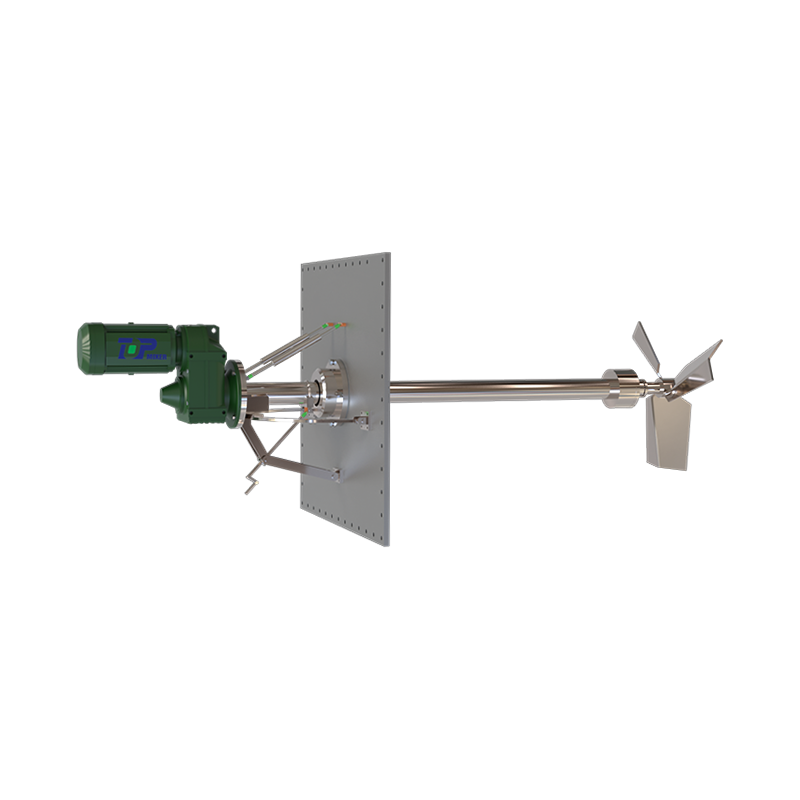

TOP3007 Adjustable Side-Entry Mixer

TOP3007 adjustable angle side-entry mixer is suitable for the reaction, mixing and storage of liquid-liquid, solid-liquid and other materials in various industries. It is suitable for industries such as biogas, petrochemicals, environmental protection, especially for large storage tanks (water collection tanks). The swing shaft structure is mainly used in situations where the agitator needs to be adjusted intermittently, especially for large storage tanks and agitator cracking. With the same power consumption, a larger mixing range can be achieved to avoid dead angles. When installed in the middle and lower part of the storage tank, its main function is to suspend, disperse and form circulation. When it is installed in the upper part of the water tank, its main function is to strengthen the circulation and avoid floating water layers. This series of agitators can be equipped with agitator anti-hanging devices and leakage indicators.
Request a Quote
Configure impeller

TOP3007 adjustable angle side-entry mixer is suitable for the reaction, mixing and storage of liquid-liquid, solid-liquid and other materials in various industries. It is suitable for industries such as biogas, petrochemicals, environmental protection, especially for large storage tanks (water collection tanks). The swing shaft structure is mainly used in situations where the agitator needs to be adjusted intermittently, especially for large storage tanks and agitator cracking. With the same power consumption, a larger mixing range can be achieved to avoid dead angles. When installed in the middle and lower part of the storage tank, its main function is to suspend, disperse and form circulation. When it is installed in the upper part of the water tank, its main function is to strengthen the circulation and avoid floating water layers. This series of agitators can be equipped with agitator anti-hanging devices and leakage indicators.

Remark

● Precision-designed gears are compact, stronger and longer-lasting.
● Sturdy bearings have a service life of more than 100,000 hours.
● One-shaft design ensures accuracy and provides stability.
● Angle adjustment in four directions provides more effective mixing performance.
● Specially designed seals can be used in almost all situations.

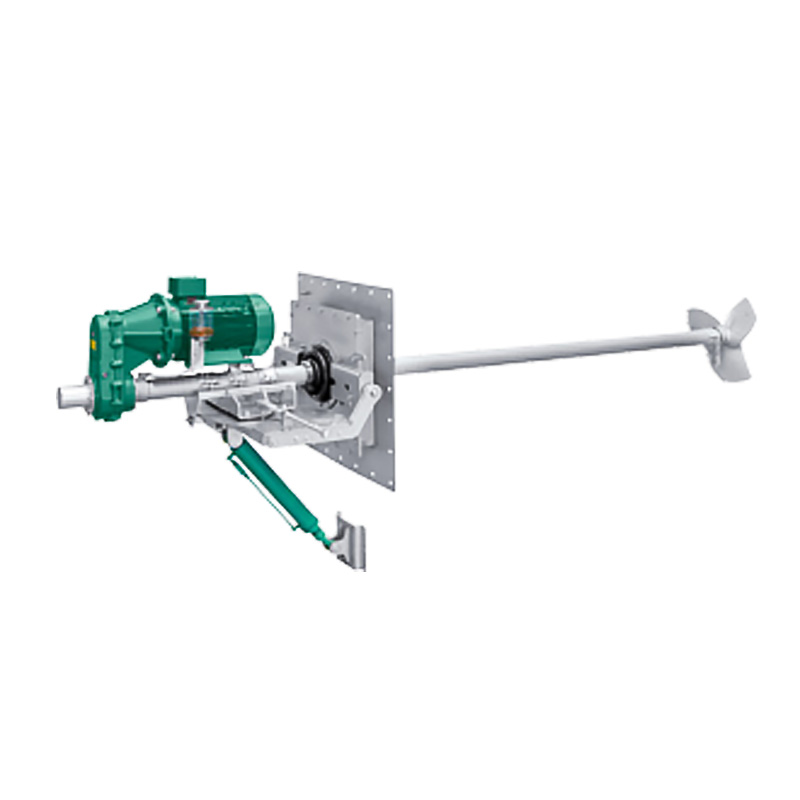

● Electric or manual rotation devices are available.
● Specially designed clean-edge impellers prevent fiber entanglement.

Notes:
· The weights in the table are approximate weights and do not include the weight of suspension and anchor bolts.
· The flange sizes in the table can be replaced by European and American standards.
· The installation method shown is the installation nozzle size on the side of the mixing container that can be selected when side-mounted.
· The weight of the motor in the table is the approximate weight of an ordinary indoor motor, which may vary depending on the manufacturer and type of motor selected. Please refer to the actual design.
· When the wall thickness of the mixing container is too thin and the strength is insufficient, please use auxiliary reinforcement measures such as reinforcing ribs.

Product Parameters
Model Speed ​​(r/min) Power (kW) Paddle diameter (mm) Axial force (100N) Flow rate (m/s)
TOP3007/1 200 7.5 850 2 2.6
TOP3007/2 275 11 800 2.9 3.2
TOP3007/3 400 11 620 2.5 3.9
TOP3007/4 275 15 850 4.1 3.6
TOP3007/5 400 15 660 3.3 4.3
TOP3007/6 275 18.5 880 4.4 3.7
TOP3007/7 400 18.5 700 3.9 4.3
TOP3007/8 400 22 750 4.5 4.5
