TOPA007 TX1 Series Concentric Double Speed Top-Entry Mixer

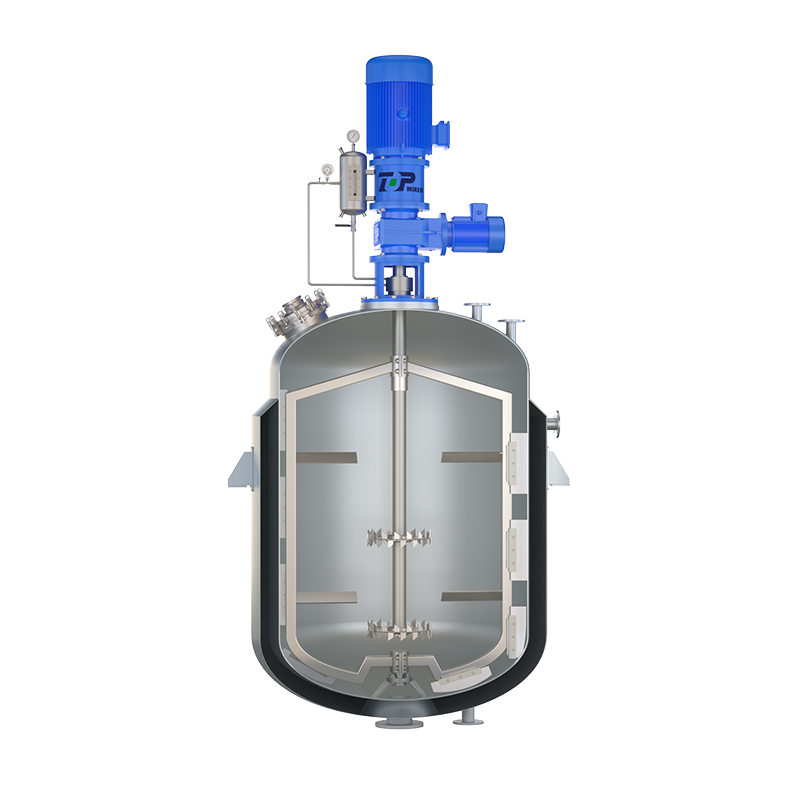

The SS series two-speed mixer uses medium and high-speed stirring in the middle, and the edge extension uses low-speed stirring. It is usually used in medium and high-viscosity occasions and is suitable for Newtonian and non-Newtonian fluids. It has the characteristics of sufficient and even stirring of materials. ● The intermediate stirring speed and the Yanbian stirring speed can be determined according to the specific material characteristics of the customer.
Request a Quote
Configure impeller

The SS series two-speed mixer uses medium and high-speed stirring in the middle, and the edge extension uses low-speed stirring. It is usually used in medium and high-viscosity occasions and is suitable for Newtonian and non-Newtonian fluids. It has the characteristics of sufficient and even stirring of materials.

● The intermediate stirring speed and the Yanbian stirring speed can be determined according to the specific material characteristics of the customer.

Remark

Configure impeller

SS concentric two-speed gear mixer is standard for dispersed discs and anchor frames. In addition to the standard configuration of impellers, Top can also provide users with a more suitable impeller form based on the actual situation of the user to ensure a better stirring effect of the user.

● The weight in the table is the approximate weight and does not include the weight of the stirring shaft and impeller inside the container.

● The size L in the table is determined based on the user's container size.

● The size DJ data in the table is determined by Top based on the user's stirring purpose, stirring capacity, and physical properties parameters, and the actual situation shall prevail.

● The weight of the motor is the approximate weight of an ordinary indoor motor and can vary according to the approximate weight of the motor, the motor manufacturer, and the type.

Remark:

● The weight in the table is approximately weight, without the weight of suspension and anchor bolts.

● The flange size in the table can be replaced by European and American standards.

● The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary due to the manufacturer and motor type. Please refer to the actual design.

● When the wall thickness of the stirring container is too thin and the strength is not enough, please use reinforcement ribs and other auxiliary materials.

Product Parameters
Model Effective Capacity(L) Rotation(r/min) Power(kW) Power(mm) Weight(kg)
TOPA007/TX1 100 20-60/1000/ 1500/3000 1.1～3 ∅500*500 ~70
TOPA007/TX2 200 20-60/1000/ 1500/3000 1.5～4 ∅600*700 ~125
TOPA007/TX3 500 20-60/1000/ 1500/3000 2.2～5.5 ∅850*900 ~325
TOPA007/TX4 1000 20-60/1000/ 1500/3000 3～11 ∅1000*1300 ~550
TOPA007/TX5 2000 20-60/1000/ 1500/3000 4～22 ∅1200*1800 ~950
TOPA007/TX6 3000 20-60/1000/ 1500/3000 5.5～30 ∅1400*2000 ~1000
TOPA007/TX7 5000 20-60/1000/ 1500/3000 7.5～45 ∅1600*2500 ~1150
