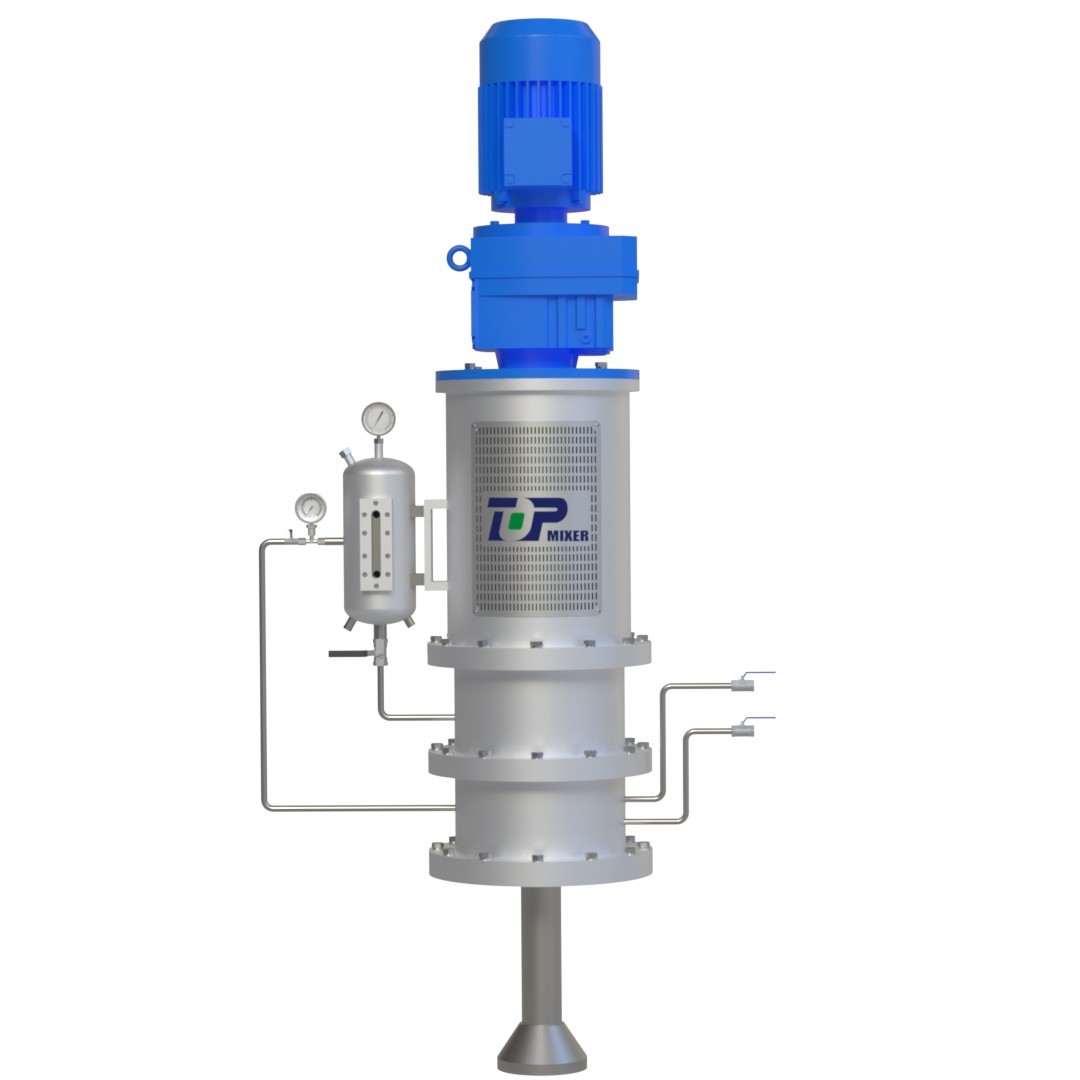

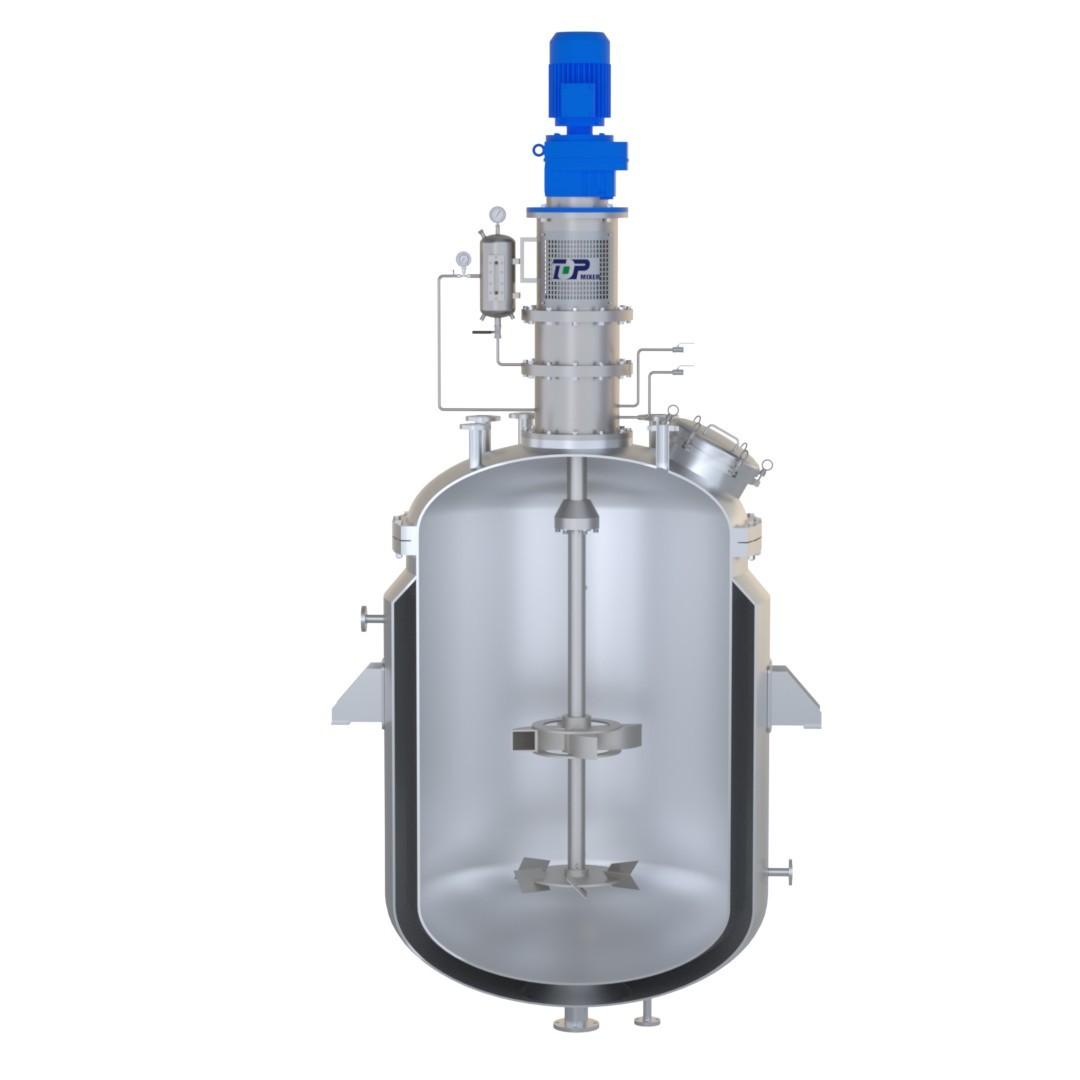

A magnetic top-feed stirrer is a stirring device that mounts a magnetic stirring arm on top of a container. It is widely used in laboratories and industrial production. The following is a brief introduction to magnetic top-feed stirrers, including their working principle, technical features, and application scenarios.

1. Working principle

The working principle of a magnetic top-feed stirrer is based on magnetic coupling. Its core components include:

External magnetic rotor: driven by a motor to rotate, generating a rotating magnetic field.

Internal magnetic rotor (stirring): Placed in the liquid inside the container, it rotates under the influence of the magnetic field of the external magnetic rotor.

Isolation sleeve: Separates the outer magnetic rotor from the inner magnetic rotor to prevent liquid leakage, while protecting the motor and magnetic system.

When the motor drives the outer magnetic rotor to rotate, the rotating magnetic field generated by the outer magnetic rotor penetrates the isolation sleeve and acts on the inner magnetic rotor, causing it to rotate synchronously. The rotation of the inner magnetic rotor drives the liquid to form eddies, thereby achieving uniform stirring of the liquid.

2. Technical Features

Non-contact transmission: Non-contact transmission is achieved through magnetic coupling, avoiding the shaft seal leakage problem of traditional mechanical agitators, and is particularly suitable for handling corrosive or high-purity liquids.

Excellent sealing performance: Since the inner and outer magnetic rotors are completely isolated by the isolation sleeve, the liquid will not leak during the stirring process, ensuring high safety.

Easy to install: The stirring device is installed on top of the container, making it easy to install and remove, and simple to maintain.

Wide range of applications: It can handle liquids of different viscosities, and different shapes and sizes of stir bar can be selected as needed.

Low shear force: Suitable for samples that are sensitive to shear force, such as cell cultures and suspensions.

Energy-saving and efficient: Magnetic coupling transmission has high efficiency and low energy consumption.

3. Application Scenarios

Laboratory: Used for experimental operations such as solution mixing, dissolution, and chemical reactions, especially suitable for experiments with high requirements for sterility and pollution-free conditions.

Industrial production: Used in industries such as chemical, pharmaceutical, and food processing for stirring high-viscosity liquids and mixing materials in reaction vessels.

Biopharmaceuticals: Used in bioreactors for processes such as cell culture and bio-fermentation, ensuring aseptic operation.

4. Strengths and Challenges

Advantages:

No leakage risk: Magnetic coupling avoids the leakage problem of mechanical seals and improves safety.

Easy to operate: easy to install and use, and low maintenance cost.

High applicability: Suitable for a variety of liquids and process conditions.

challenge:

Challenges in scaling up: For large containers, the manufacture and installation of magnetic stirrers are quite difficult, and the strength and stability requirements for the stirring shaft are high. Limited stirring effect for high-viscosity liquids: When handling extremely high-viscosity liquids, the stirring efficiency may be lower than that of mechanical stirrers.

Magnetic top-load stirrers, with their unique non-contact transmission method and efficient and safe stirring performance, have become indispensable equipment in modern laboratories and industrial production.

Introduction to Magnetic Bottom Stirring

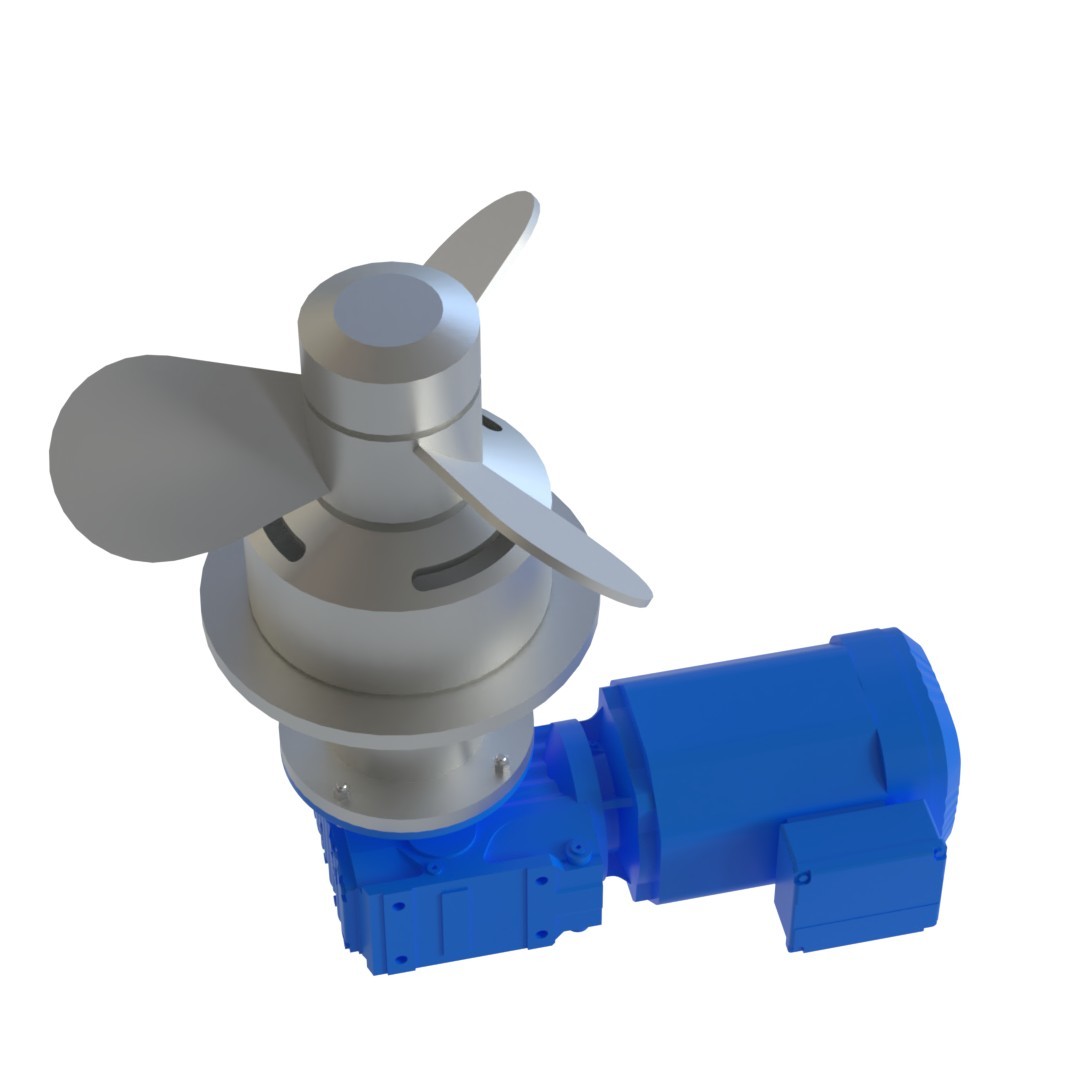

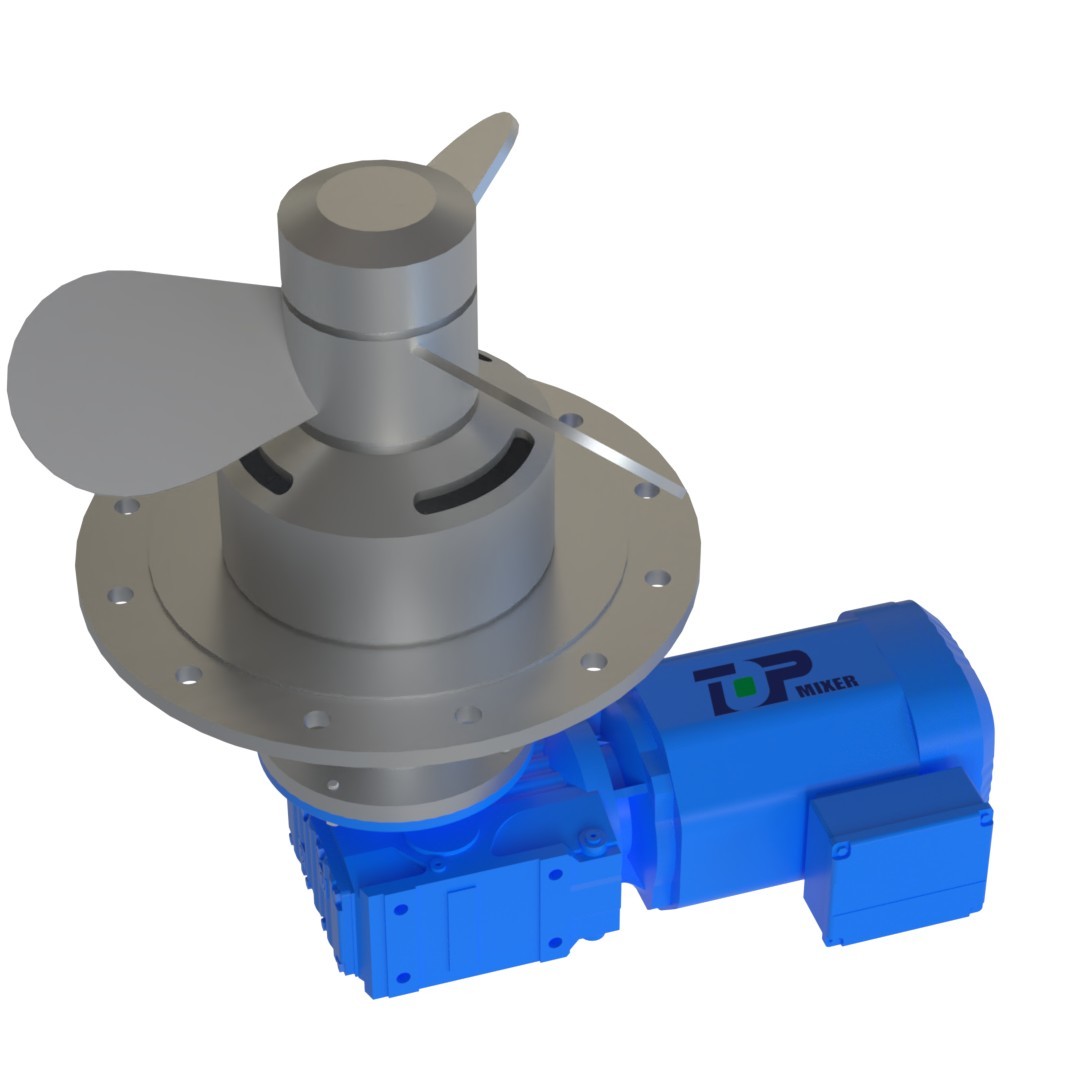

A magnetic bottom-entry mixer is a mixing device that uses magnetic drive technology. Its mixing unit is located at the bottom of the container, and the stirring paddle is rotated through non-contact magnetic coupling transmission to achieve uniform mixing of liquids. The following is a detailed introduction to magnetic bottom-entry mixers:

1. Working principle

Magnetic bottom-entry mixers utilize the principle of attraction between opposite poles and repulsion between like poles in magnetic materials. An external magnetic drive device generates a rotating magnetic field, which in turn drives the internal stirring paddle (or stirrer) to rotate. Its working process is as follows:

An external magnetic drive device (such as a magnet driven by an electric motor) generates a rotating magnetic field.

The internal stirring paddle (or stirrer) rotates synchronously with the external magnetic field through magnetic coupling.

The rotation of the stirring paddle causes the liquid inside the container to form a vortex, thereby achieving uniform mixing of the liquid.

2. Technical Features

No leakage risk: Magnetic coupling drive eliminates the need for mechanical seals, avoiding the leakage problems of traditional mechanical seals. It is especially suitable for handling toxic, harmful, flammable, explosive or high-purity materials.

High cleanliness: The stirring device is located at the bottom of the container, reducing dead zones and ensuring uniform mixing of materials, making it suitable for applications with high cleanliness requirements.

Long life design: High-performance magnets and corrosion-resistant materials, such as 316L stainless steel, extend the service life of the equipment.

Safe and reliable: By replacing the dynamic mechanical seal with a static seal using a welded isolation sleeve, the problems of running, leaking, dripping, and seeping from traditional seals are solved.

Highly efficient mixing: The bottom-mounted agitator generates good circulation flow, improving mixing efficiency.

3. Application Scenarios

Magnetic bottom-entry mixers are widely used in the following fields:

Pharmaceutical industry: Used in mixing, reaction and other processes in drug production to meet GMP standards.

Biotechnology: Ensuring aseptic operation in processes such as bio-fermentation and cell culture.

Food and beverage industry: Used for stirring and mixing in food processing to ensure product quality and safety.

Chemical industry: Used for mixing and reactions in the production of fine chemicals.

4. Strengths and Challenges

Advantages:

No risk of leakage, high safety.

It has high cleanliness and is suitable for industries with high hygiene requirements.

Long lifespan design reduces maintenance costs.

challenge:

For high-viscosity materials, mixing efficiency may not be as good as that of mechanical agitators.

The equipment cost is relatively high.

Magnetic bottom-entry mixers, with their unique features of being leak-free, highly clean, and having a long service life, play an important role in industries such as pharmaceuticals, biotechnology, food, and chemicals, and are one of the indispensable pieces of equipment in modern industrial production.
