TMC High Pressure Magnetic Stirring

● Based on Top's years of experience and unique technology, and the application of advanced measurement and analysis technology, we designed an efficient impeller with good mixing effect and used it on our TWC magnetic mixer ● Top TWC magnetic mixer can provide vertical stirring from 0.37KW to 45KW. All products are strictly inspected by Top Engineers to ensure the high reliability of the product. ● The mechanical structure is simple and compact, which is easy to operate, maintain, and repair, and is for the user's sake. ● The original impeller form increases the discharge volume significantly. ● The sealing form adopts magnetic sealing, which has the characteristics of reliability and safety. ● First motor fixation reduces vibration significantly. ● Efficient hard-toothed gear transmission, which is heat-resistant, durable and low noise. ● Deep groove ball bearing system ensures long-term use.
Request a Quote
Configure impeller

● Based on Top's years of experience and unique technology, and the application of advanced measurement and analysis technology, we designed an efficient impeller with good mixing effect and used it on our TWC magnetic mixer

● Top TWC magnetic mixer can provide vertical stirring from 0.37KW to 45KW. All products are strictly inspected by Top Engineers to ensure the high reliability of the product.

● The mechanical structure is simple and compact, which is easy to operate, maintain, and repair, and is for the user's sake.

● The original impeller form increases the discharge volume significantly.

● The sealing form adopts magnetic sealing, which has the characteristics of reliability and safety.

● First motor fixation reduces vibration significantly.

● Efficient hard-toothed gear transmission, which is heat-resistant, durable and low noise.

● Deep groove ball bearing system ensures long-term use.

Remark

Configure impeller

TMC magnetic gear mixer is standard with YCK impeller (vertical type). In addition to the standard configuration of impellers, Top can also provide users with a more suitable impeller form based on the actual situation of the user to ensure a better stirring effect of the user.

● The weight in the table is the approximate weight and does not include the weight of the stirring shaft and impeller inside the container.

● The size in the table is determined according to the user's container size.

● The size DJ data in the table is determined by Top based on the user's stirring purpose, stirring capacity, and physical properties parameters, and the actual situation shall prevail.

● The weight of the motor is the approximate weight of an ordinary indoor motor, which can vary according to the approximate weight of the motor, the motor manufacturer, and the type.

Remark:

● The weight in the table is approximately weight, without the weight of suspension and anchor bolts.

● The flange size in the table can be replaced by European and American standards.

● The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary due to the manufacturer and type of motor selection. Please refer to the actual design.

● When the wall thickness of the stirring container is too thin and the strength is not enough, please use reinforcement ribs and other auxiliary materials.

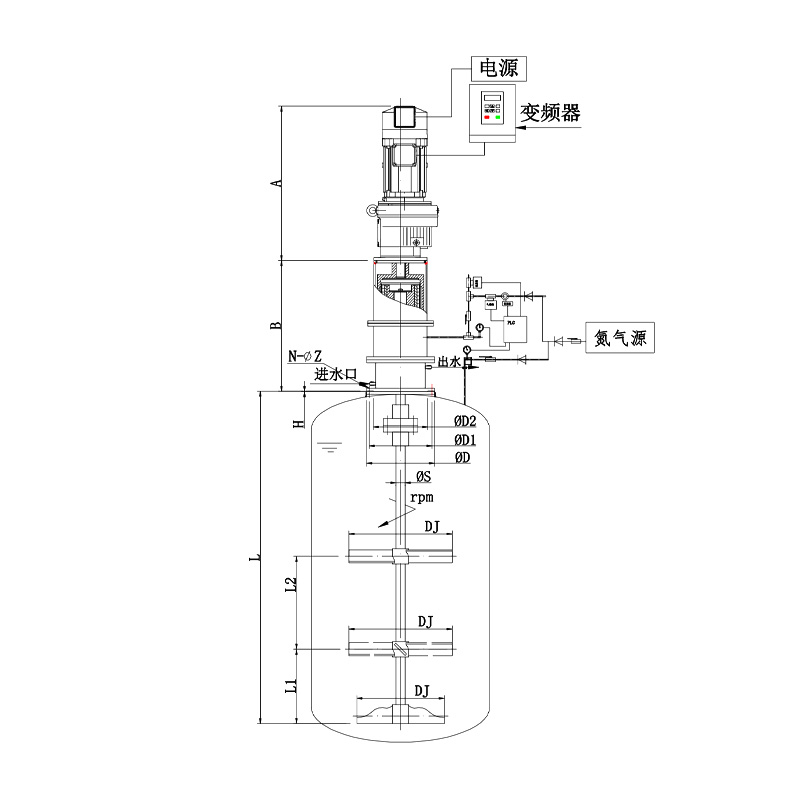

Product Parameters
Model Torque(N.m) Rotation(r/min) Power
( KW)		 Installation dimensions Weight(kg)
D D1 D2 N-∅Z S H A B
TMC30 一 >50 0.37～1.5 285 240 185 8-∅18 35 3 452 500 ~70
TMC50 一 >50 1.1~3 285 240 185 8-∅18 40 3 484 500 ~125
TMC100 一 >50 1.5～4 360 320 260 8-∅18 50 3 505 545 ~325
TMC200 一 >50 2.2～5.5 360 320 260 12-∅18 60 3 760 601 ~550
TMC400 一 >50 3～11 435 400 325 12-∅18 70 3 786 730 ~950
TMC600 一 >50 4~～22 435 400 325 16-∅18 80 3 790 810 ~1000
TMC800 一 >50 5.5~30 460 420 350 16-∅18 90 3 986 835 ~1150
TMC1200 一 >50 7.5～45 495 455 380 16-∅30 100 3 1062 840 ~1200
