TOPZQ02RH Emulsifying Hydraulic Mixer II

RHII emulsification mixer is a product developed by our company in combination with advanced foreign technologies. Suitable for the production of foundation, High viscosity materials such as green cream and toothpaste. Its biggest feature is that the internal and external circulation homogenizer can enable the material to work in the internal and external circulation homogenization state so that the material can achieve a good emulsification effect. This emulsification mixer is professionally designed according to the paste-making process of chemicals and ointments. This unit is made of a pretreatment pot Vacuum emulsification stirring pot, vacuum pump, hydraulic system, material pouring system, electrical control system, working platform, and other partsbecome. This unit is easy to operate, has stable performance, good homogeneous performance, high production efficiency, easy to clean, reasonable structure, and occupancy has a small ground area and high degree of automation.
Request a Quote
Configure impeller

RHII emulsification mixer is a product developed by our company in combination with advanced foreign technologies. Suitable for the production of foundation, High viscosity materials such as green cream and toothpaste. Its biggest feature is that the internal and external circulation homogenizer can enable the material to work in the internal and external circulation homogenization state so that the material can achieve a good emulsification effect.

This emulsification mixer is professionally designed according to the paste-making process of chemicals and ointments. This unit is made of a pretreatment pot Vacuum emulsification stirring pot, vacuum pump, hydraulic system, material pouring system, electrical control system, working platform, and other partsbecome. This unit is easy to operate, has stable performance, good homogeneous performance, high production efficiency, easy to clean, reasonable structure, and occupancy has a small ground area and high degree of automation.

Remark

Product details

● The stirring is subject to frequency conversion to set the speed so that the stirring line speed is arbitrarily adjusted within 0-150m/min to meet different process requirements.

● Advanced homogenizer adopts the latest technology of our company, with unique structure and excellent efficiency.

● All the materials are fused with imported stainless steel, and the inner surface of the container is polished 300EMSH (sanitary grade), which meets sanitary requirements.

● Vacuum material suction, vacuum defoaming, the entire process is completed in a vacuum state, without bacterial infection, and prolongs the product shelf life.

● The shape is beautiful and elegant, and the appearance adopts special polishing technology, and the luster is like a mirror.

Working principle

● The homogenous cutting head must not be operated in an empty pot due to its extremely high speed, so as not to affect the sealing degree after local heating.

● The ground wire is reliably grounded to ensure safety in electricity use.

● The shaft end of the homogenizer is turned right. Each time the motor is connected or not reactivated for a long time, you should activate and try turning. Make sure that there are no

● The homogenizer is officially enabled to operate at the wrong time.

● Before each stirring starts, tick it to check whether there are any abnormalities in the stirring wall. If there is any, it should be eliminated immediately.

● Before stirring and vacuuming work, be sure to check whether the pot is flat with the pot cover, whether the pot mouth, material mouth cover, etc. are tightly covered, and seal it. Depend on.

● Before the vacuum pump is turned off, the ball valve in front of the vacuum pump should be closed.

● The vacuum pump can be started and operated under the sealing condition of the homogenized pot. If there is a special need, an open-air atmospheric start pump, cannot operate for more than 3 minutes.

● The equipment must be powered off before any maintenance or cleaning is performed.

● Do not put your hands into the kettle during the operation of the equipment to prevent accidents.

● If there is any abnormal response during operation, stop running immediately and wait until the cause is found before turning on the computer.

Application

●Food ●Pharmaceuticals ●Cosmetics

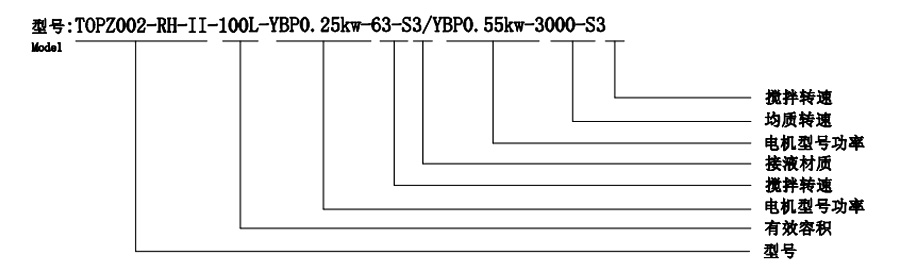

Product Parameters
Model Effective Capacity(L) Agitator Power Agitator Power Power(mm) Limit Tacuum(Pas)  Power(kW)  Weight(Kg)
Maintenance pot Water phase pot Oil phase pot Power Speed Power Speed
TOPZ002-RH-II-2000 10 8 5 0.25 0-63 0.55 0-3000 ∅200x250 -0.09 0.55 550
TOPZ002-RH-II-3000 20 16 10 0.37 0-63 1.5 0-3000 ∅300x300 -0.09 0.55 750
TOPZ002-RH-II-5000 50 40 25 0.75 0-63 2.2 0-3000 ∅400x400 -0.09 0.75 1100
TOPZ002-RH-II-10000 100 80 50 1.5 0-63 4 0-3000 ∅500x550 -0.09 0.75 1500
