Home / Product / Special Mixer / TOPZ001 RH Emulsified Hydraulic Mixer I

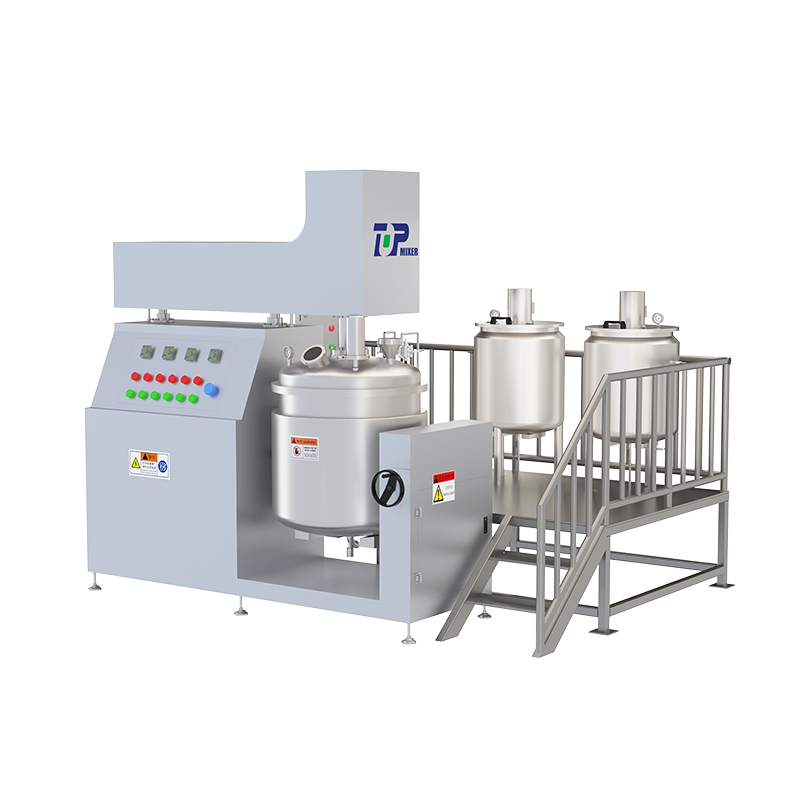

TOPZ001 RH Emulsified Hydraulic Mixer I

RHI Emulsification Mixer is a patented product developed by our company in combination with advanced foreign technologies and complements RHII Emulsification Mixer. Suitable for the production of high-viscosity materials such as foundation, cream, and toothpaste. Its biggest feature is that the internal and external circulation homogenizer can enable the material to work in the internal and external circulation homogenization state so that the material can achieve a good emulsification effect. This emulsification mixer is professionally designed according to the paste-making process of cosmetics and ointments. This unit consists of a pretreatment pot, a vacuum emulsification mixing pot, a vacuum pump, a hydraulic system, a feed pouring system, an electrical control system, a working platform, and other parts. This unit is easy to operate and stable in performance, has good homogeneous performance, high production efficiency, easy to clean, and reasonable structure. It covers a small area and has high automation.
Request a Quote
Configure impeller

RHI Emulsification Mixer is a patented product developed by our company in combination with advanced foreign technologies and complements RHII Emulsification Mixer. Suitable for the production of high-viscosity materials such as foundation, cream, and toothpaste. Its biggest feature is that the internal and external circulation homogenizer can enable the material to work in the internal and external circulation homogenization state so that the material can achieve a good emulsification effect.

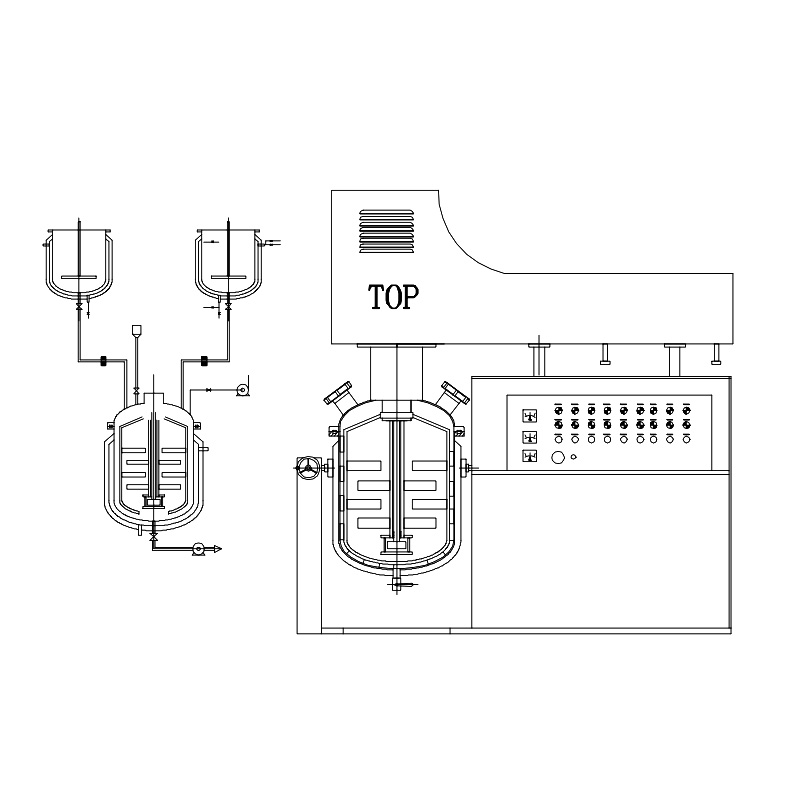

This emulsification mixer is professionally designed according to the paste-making process of cosmetics and ointments. This unit consists of a pretreatment pot, a vacuum emulsification mixing pot, a vacuum pump, a hydraulic system, a feed pouring system, an electrical control system, a working platform, and other parts. This unit is easy to operate and stable in performance, has good homogeneous performance, high production efficiency, easy to clean, and reasonable structure. It covers a small area and has high automation.

Remark

Product details

● The stirring adopts frequency conversion speed to adjust the stirring line speed arbitrarily within 0 150m/mn to meet different process requirements.

● Advanced homogenizer adopts the latest technology of our company, with unique structure and excellent efficiency.

● All contact materials are made of imported stainless steel. The inner surface of the container is polished 300EMSH (sanitary grade), meeting hygiene requirements.

● Vacuum material absorption, vacuum defoaming, the entire process is completed in a vacuum state, without bacterial infection, extending the product shelf life, beautiful and elegant appearance, using special polishing technology, and the luster is like a mirror.

How it works

● The homogenous cutting head must not be operated in an empty pot due to its extremely high speed. To avoid affecting the sealing degree after local heat.

● The ground wire is reliably grounded to ensure safety in electricity use.

● The shaft end of the homogenizer is turned right. Each time the motor is connected or not reactivated for a long time, you should activate and try turning. When confirming that it is correct, let the homogenizer be officially operated.

● Before each stirring starts, you should activate it to check whether there are any abnormalities in the stirring wall. If so, it should be excluded immediately.

● Before stirring and vacuuming, be sure to check whether the pot is flat with the pot cover, whether the pot mouth, material mouth cover, etc. are tightly covered, and whether the seal is reliable.

● Before the vacuum pump is turned off, the ball valve in front of the vacuum pump should be closed.

● The vacuum pump can be started and operated under the sealing condition of the homogenized pot. If there is a special need, open the atmospheric start pump and run for more than 3 minutes.

● The equipment must be powered off before any maintenance or cleaning is performed.

● Do not put your hands into the kettle during the operation of the equipment to prevent accidents.

● If there is any abnormal response during operation, stop running immediately and wait until the cause is found before turning on the computer.

Application

●Food ●Pharmaceuticals ●Cosmetics

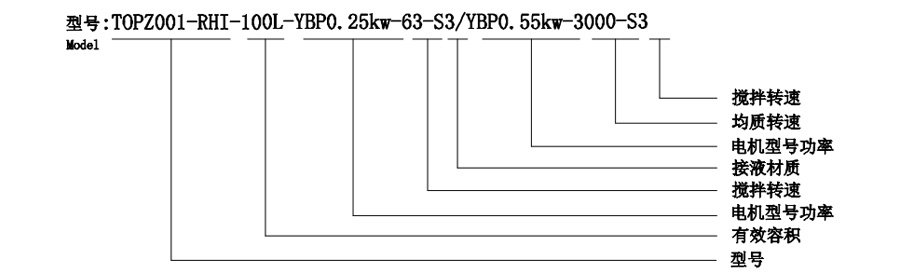

Product Parameters
Model Effective Capacity(L) Agitator Power Agitator Power Power(mm) Limit Tacuum(Pas)  Power(kW)  Weight(Kg)
Maintenance pot Water phase pot Oil phase pot Power Speed Power Speed
TOPZ001-RHI-10 10 8 5 0.25 0-63 0.55 0-3000 ∅200x250 -0.09 0.55 550
TOPZ001-RHI-20 20 16 10 0.37 0-63 1.5 0-3000 ∅300x300 -0.09 0.55 750
TOPZ001-RHI-50 50 40 25 0.75 0-63 2.2 0-3000 ∅400x400 -0.09 0.75 1100
TOPZ001-RHI-100 100 80 50 1.5 0-63 4 0-3000 ∅500x550 -0.09 0.75 1500
TOPZ001-RHI-200 200 160 100 2.2 0-63 5.5 0-3000 ∅600x700 -0.09 0.75 1500
TOPZ001-RHI-500 500 400 250 4 0-63 7.5 0-3000 ∅800x1000 -0.09 1.1 2200
TOPZ001-RHI-1000 1000 800 500 5.5 0-63 11 0-3000 ∅1100x1200 -0.09 1.1 2500
