Magnetic Drive Mixer

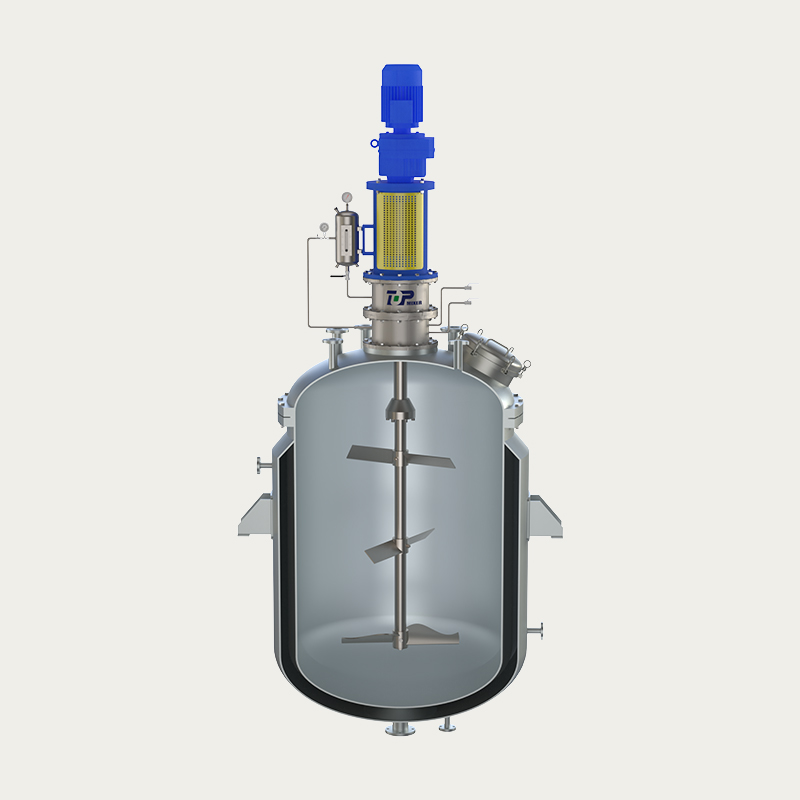

This series of mixers adopts an isolated static sealing structure, uses a strong magnetic field to transmit torque without contact, and can achieve permanent zero leakage. It is usually used in occasions such as flammable, explosive, high-pressure, and toxic media. The product produced by our company is between -60°C and 350C, the pressure is between -0.1~22Mpa, the output torque is <5000N.m, and the stirring is read <1000rpm. Users must indicate their use when selecting our company's products. Temperature and pressure, whether there are solid particles and materials corrosion suddenly, connect Frank to customize according to other user standards.

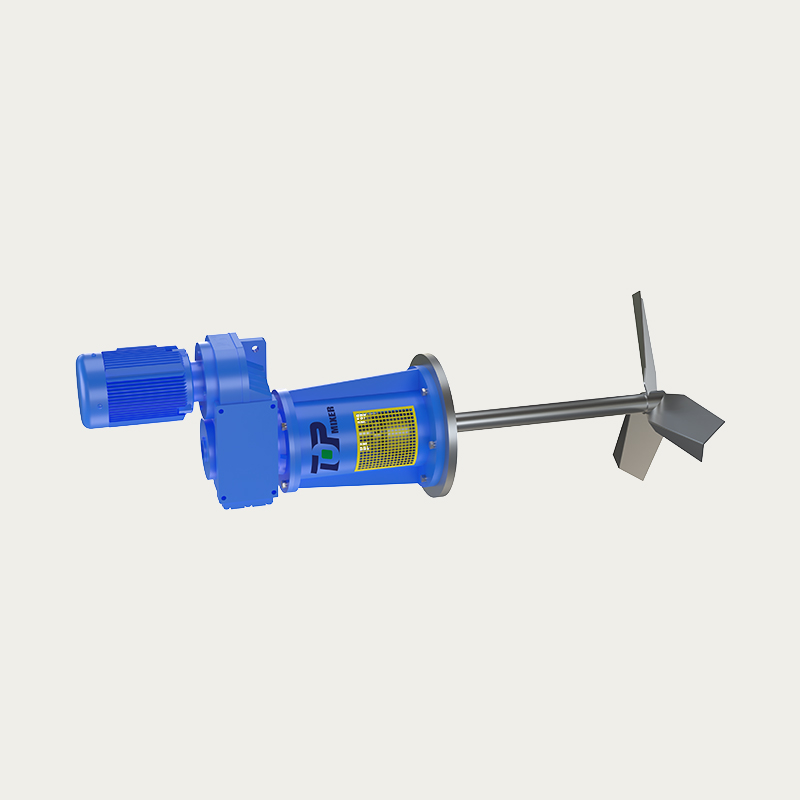

This series of mixers adopts an isolation sleeve static sealing structure and uses a strong magnetic field to transmit torque without contact, which can achieve permanent zero leakage. It is usually used in occasions such as flammable and explosive, high-pressure, and toxic media. Advantages: The high mixing effect that a side-in mixer can obtain when power consumption is consumed, the power is only 1/3-2/3 of that of a general center mixer. Note: When selecting a model, users need to provide whether they contain solid particles and corrosive media. Remark: 1. The weight in the table is approximate weight and does not include the weight of suspension or foot support. 2. The weight of the motor in the table is the approximate weight of an ordinary indoor motor. It may vary depending on the manufacturer and type of motor. Please use the design as the standard. 3. When the wall thickness of the mixing container is too thin and the strength is not enough, please use auxiliary reinforcement measures such as suspension and foot support. 4. The mixer and shaft length can also be customized according to user requirements.

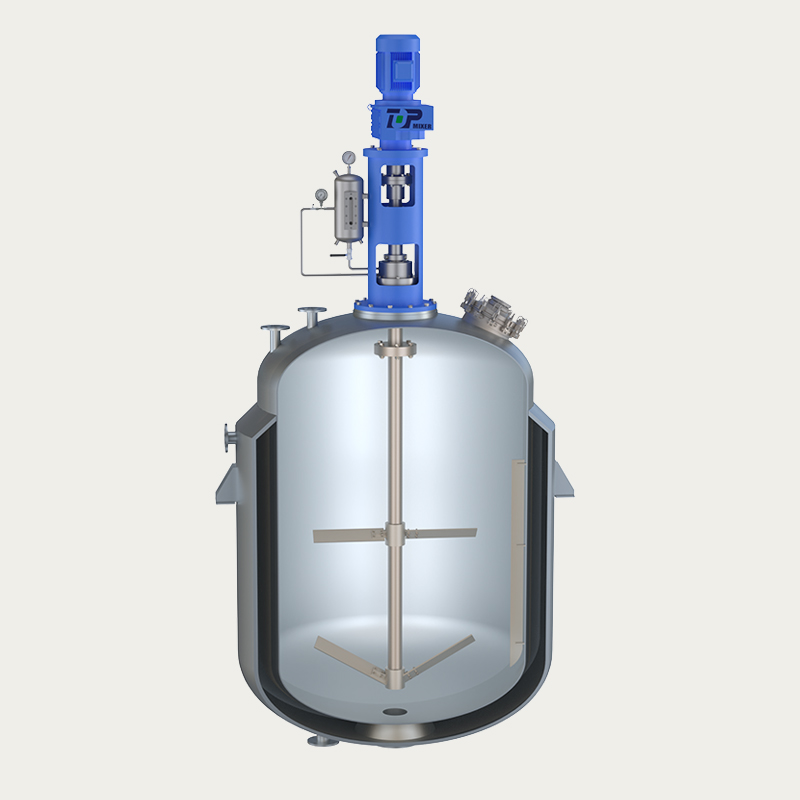

● Based on Top's years of experience and unique technology, and the application of advanced measurement and analysis technology, we designed an efficient impeller with good mixing effect and used it on our TWC magnetic mixer ● Top TWC magnetic mixer can provide vertical stirring from 0.37KW to 45KW. All products are strictly inspected by Top Engineers to ensure the high reliability of the product. ● The mechanical structure is simple and compact, which is easy to operate, maintain, and repair, and is for the user's sake. ● The original impeller form increases the discharge volume significantly. ● The sealing form adopts magnetic sealing, which has the characteristics of reliability and safety. ● First motor fixation reduces vibration significantly. ● Efficient hard-toothed gear transmission, which is heat-resistant, durable and low noise. ● Deep groove ball bearing system ensures long-term use.

● Based on Top's years of experience and unique technology, and the application of advanced measurement and analysis technology, we designed an efficient impeller with good mixing effect and used it on our TWC magnetic mixer ● Top TWC magnetic mixer can provide vertical stirring from 0.37KW to 45KW. All products are strictly inspected by Top Engineers to ensure the high reliability of the product. ● The mechanical structure is simple and compact, which is easy to operate, maintain, and repair, and is for the user's sake. ● The original impeller form increases the discharge volume significantly. ● The sealing form adopts magnetic sealing, which has the characteristics of reliability and safety. ● First motor fixation reduces vibration significantly. ● Efficient hard-toothed gear transmission, which is heat-resistant, durable and low noise. ● Deep groove ball bearing system ensures long-term use.
