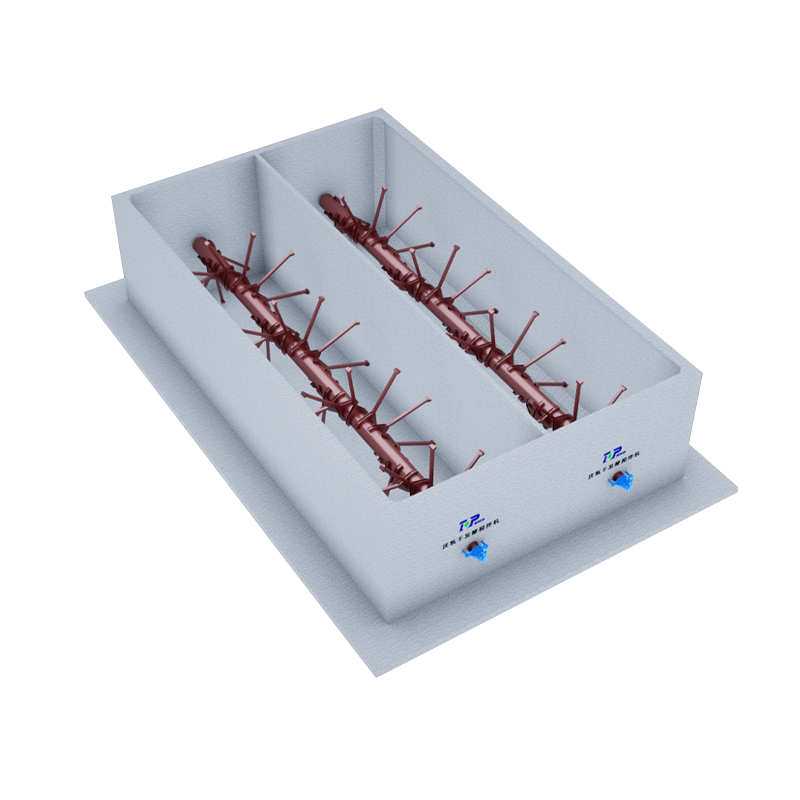

TOP3002 Horizontal Anaerobic Fermentation Mixer

Based on TOP's many years of experience and unique technology, and the application of advanced measurement and analysis technology, we have designed an efficient impeller with better mixing effect, which is used in our TOP3002 mixer.·TOP GFJ mixer can provide vertical mixing from 3KW to 18.5KW. All products are strictly tested by TOP engineers to ensure the high reliability of the products.·The mechanical structure is simple and compact, easy to operate, maintain and repair, all for the sake of users. ·The original impeller form significantly increases the discharge volume.·A variety of shaft seal types meet different materials and working conditions.·The firm motor fixation greatly reduces vibration.·High-efficiency hardened gear transmission is heat-resistant, durable and low-noise.·Deep groove ball bearing system ensures long-term use without lubrication.
Request a Quote
Configure impeller

Based on TOP's many years of experience and unique technology, and the application of advanced measurement and analysis technology, we have designed an efficient impeller with better mixing effect, which is used in our TOP3002 mixer.
·TOP GFJ mixer can provide vertical mixing from 3KW to 18.5KW. All products are strictly tested by TOP engineers to ensure the high reliability of the products.
·The mechanical structure is simple and compact, easy to operate, maintain and repair, all for the sake of users. ·The original impeller form significantly increases the discharge volume.
·A variety of shaft seal types meet different materials and working conditions.
·The firm motor fixation greatly reduces vibration.
·High-efficiency hardened gear transmission is heat-resistant, durable and low-noise.
·Deep groove ball bearing system ensures long-term use without lubrication.

Remark

Impeller configuration
The TOP3002 gear mixer is equipped with a GX impeller (vertical) as standard. In addition to the standard impeller, TOP can also provide users with more suitable impeller forms according to the actual situation of the user. Ensure that the user's mixing effect is better.
· The weight in the table is approximate.
· The size m³ in the table is determined according to the user's container size.
· The size DJ data in the table is determined by TOP according to the user's mixing purpose, mixing capacity, and physical parameters, and the actual situation shall prevail.
· The weight of the motor is the approximate weight of an ordinary indoor motor, which may vary according to the motor's weight, motor manufacturer, and type.

Note:
· The weight in the table is approximate, excluding the weight of the suspension and anchor bolts.
· The flange size in the table can be replaced by European standards and American standards.
· The weight of the motor in the table is the approximate weight of an ordinary indoor motor, which may vary due to different manufacturers and motor types. Please refer to the actual design.
· When the wall thickness of the mixing container is too thin and the strength is insufficient, please use reinforcement ribs and other auxiliary.

Product Parameters
Pool size (m) Model Effective volume (m3) Speed ​​(r/min) Power (kW) Weight (T)
∅6*6.2*12 TOP3002/1 450 3 3 5
∅6*6.2*16 TOP3002/2 600 3 5.5 10
∅6*6.2*28 TOP3002/3 1000 3 11 15
∅6*6.2*56 TOP3002/4 2000 3 18.5 20
