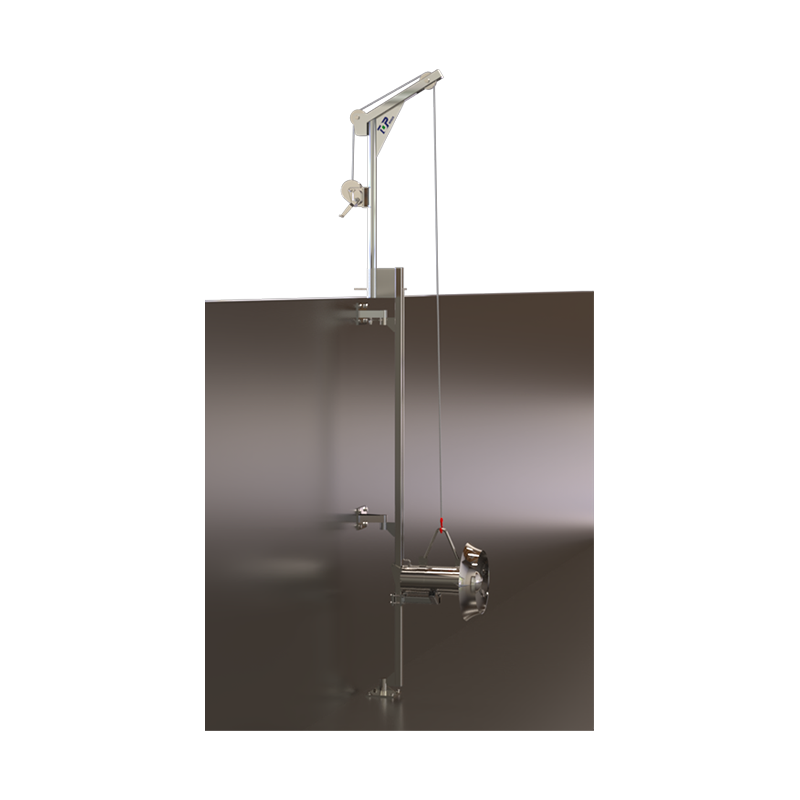

TOP1010 Submersible Mixer

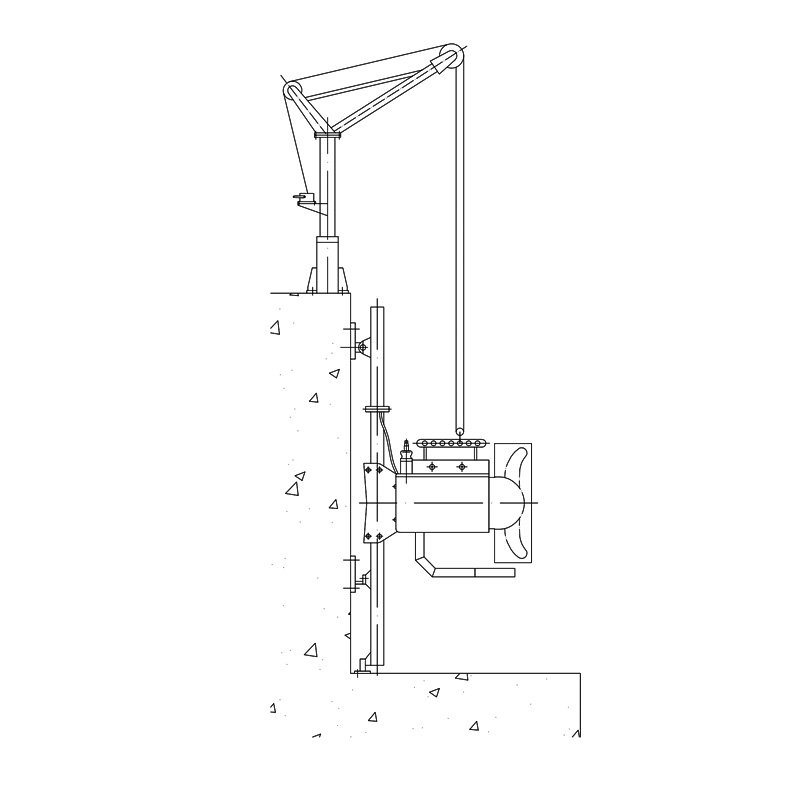

As one of the key equipment in water treatment process, TOP1010 submersible mixer can realize the homogenization and flow process requirements of solid-liquid two-phase flow and solid-liquid-gas three-phase flow in biochemical process. It consists of submersible motor, impeller and installation system. Submersible mixer is a direct-connected structure. It has the advantages of compact structure, low energy consumption and easy maintenance. The impeller is precision-cast or stamped, with high precision, large thrust, simple and beautiful streamlined shape, and anti-winding function. This series of products is suitable for places where solid-liquid stirring and mixing are required.
Request a Quote
Configure impeller

As one of the key equipment in water treatment process, TOP1010 submersible mixer can realize the homogenization and flow process requirements of solid-liquid two-phase flow and solid-liquid-gas three-phase flow in biochemical process. It consists of submersible motor, impeller and installation system. Submersible mixer is a direct-connected structure. It has the advantages of compact structure, low energy consumption and easy maintenance. The impeller is precision-cast or stamped, with high precision, large thrust, simple and beautiful streamlined shape, and anti-winding function. This series of products is suitable for places where solid-liquid stirring and mixing are required.

Remark

Scope of use
Submersible mixers are mainly used for mixing, stirring and circulation in municipal and industrial sewage treatment processes. They can also be used as flow-pushing equipment for landscape water circulation. By stirring, water flow is created to effectively prevent suspended matter from settling.
Submersible mixers can operate normally and continuously under the following conditions:
● Medium temperature does not exceed 40°C
● PH value of the medium is 5-9
● Medium density does not exceed 1150kg/m3
● Long-term submerged operation, the diving depth generally does not exceed 20 meters
● Power range: 0.85-10kW
● Mixing series: small impeller diameter, generally blade diameter is 260-620mm, speed is 180-980r/min
● Plug flow: generally blade diameter is 1100-2500mm, speed is 22-115r/min
● Material: cast iron/cast all stainless steel, can be customized according to customer requirements

Product Parameters
Model Speed (r/min) Power (kW) Rated current (A) Impeller diameter  (mm) Thrust (N)
TOP1010/1 1460 0.37 1.12 210 138
TOP1010/2 1400 0.55 1.35 230 145
TOP1010/3 740 0.85 3.2 260 163
TOP1010/4 980 1.5 4 260 290
TOP1010/5 740 2.2 5.9 320 582
TOP1010/6 960 4 10.3 320 609
TOP1010/7 740 1.5 5.2 400 600
TOP1010/8 740 2.5 7 400 800
TOP1010/9 740 3 8.6 400 920
TOP1010/10 980 4 10.3 400 1200
TOP1010/11 480 4 14 620 1400
TOP1010/12 480 5 18.2 620 1800
TOP1010/13 480 7.5 28 620 2600
TOP1010/14 480 10 32 620 3300
