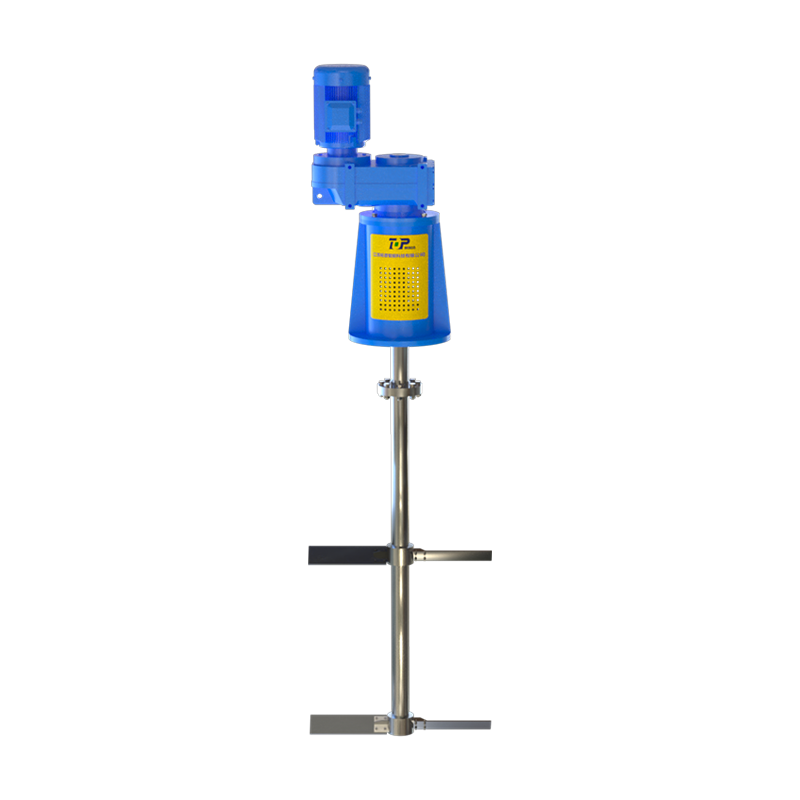

TOP1002 Flocculation Tank Mixer

Based on TOP's many years of experience and unique technology, and the application of advanced measurement and analysis technology, we have designed an efficient impeller with better mixing effect, which is used in our TOP1002 mixer.·TOP's TOP1002 mixer can provide vertical mixing from 0.37KW to 45KW. All products are strictly tested by TOP engineers to ensure the high reliability of the products.·The mechanical structure is simple and compact, easy to operate, maintain and repair, all for the sake of users ·The original impeller form significantly increases the discharge volume.·A variety of shaft seal types meet different materials and working conditions·The firm motor fixation greatly reduces vibration.·High-efficiency hardened gear transmission, with the characteristics of heat resistance, durability and low noise·Deep groove ball bearing system. Ensure long-term use without lubrication.
Request a Quote
Configure impeller

Based on TOP's many years of experience and unique technology, and the application of advanced measurement and analysis technology, we have designed an efficient impeller with better mixing effect, which is used in our TOP1002 mixer.
·TOP's TOP1002 mixer can provide vertical mixing from 0.37KW to 45KW. All products are strictly tested by TOP engineers to ensure the high reliability of the products.
·The mechanical structure is simple and compact, easy to operate, maintain and repair, all for the sake of users ·The original impeller form significantly increases the discharge volume.
·A variety of shaft seal types meet different materials and working conditions
·The firm motor fixation greatly reduces vibration.
·High-efficiency hardened gear transmission, with the characteristics of heat resistance, durability and low noise
·Deep groove ball bearing system. Ensure long-term use without lubrication.

Remark

Impeller configuration
TOP1002 gear mixer is equipped with XJ impeller. In addition to the standard impeller, TOP can also provide users with more suitable impeller forms according to the actual situation of users to ensure better mixing effect.
·The weight in the table is approximate weight. It does not include the weight of the mixing shaft and impeller inside the container.
·The dimension L in the table is determined according to the user's container size.
·The dimension DJ data in the table is determined by TOP Company according to the user's mixing purpose, mixing capacity and physical parameters, and the actual situation shall prevail.
·The weight of the motor is the approximate weight of ordinary indoor motors, which may vary according to the weight of the motor, the manufacturer and type of the motor.

Remarks:
·The weight in the table is approximate weight, excluding the weight of suspension and anchor bolts.
·The flange size in the table can be replaced by European standards and American standards.
·The weight of the motor in the table is the approximate weight of ordinary indoor motors, which may vary due to different manufacturers and motor types. Please refer to the actual design.

Product Parameters

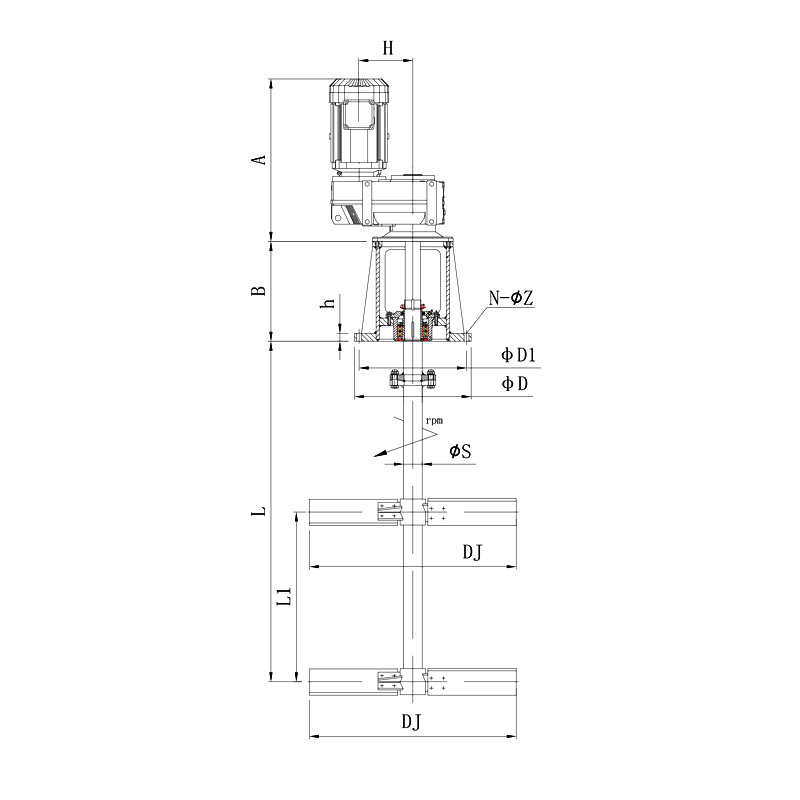

Pool size Model Speed
(r/min)		 Power (kW) Installation dimensions
D D1 N-∅Z H S L DXJ
1*1*1.5 TOP1002/45 30~60 0.37~1.5 160 130 4-∅9 112 35 1200 DXJ45
1.5*1.5*3.5 TOP1002/45 30~60 1.1~2.2 360 320 8-∅18 128.1 60 2800 DXJ45
1.8*1.8*4 TOP1002/55 30~60 1.5~3.0 435 400 12-∅18 136 70 3000 DXJ55
2*2*4 TOP1002/55 30~60 2.2~4.0 435 400 12-∅18 159.5 70 3000 DXJ55
2.5*2.5*4.5 TOP1002/55 30~60 3.0~5.5 435 400 12-∅18 200 70 3300 DXJ55
3*3*5 TOP1002/65 30~60 4.0~7.5 460 320 12-∅18 246.7 80 3500 DXJ65
4*4*5 TOP1002/65 30~60 5.5~11.0 450 420 12-∅18 285 80 3500 DXJ65
5*5*6.5 TOP1002/80 30~60 7.5~15 495 455 12-∅18 332.4 90 4700 DXJ80
8*8*6.5 TOP1002/90 30~60 11~18.5 555 510 12-∅23 382.6 100 4700 DXJ90
10*10*8 TOP1002/100 30~60 18.5~22 620 560 16-∅23 447 120 6000 DXJ100
